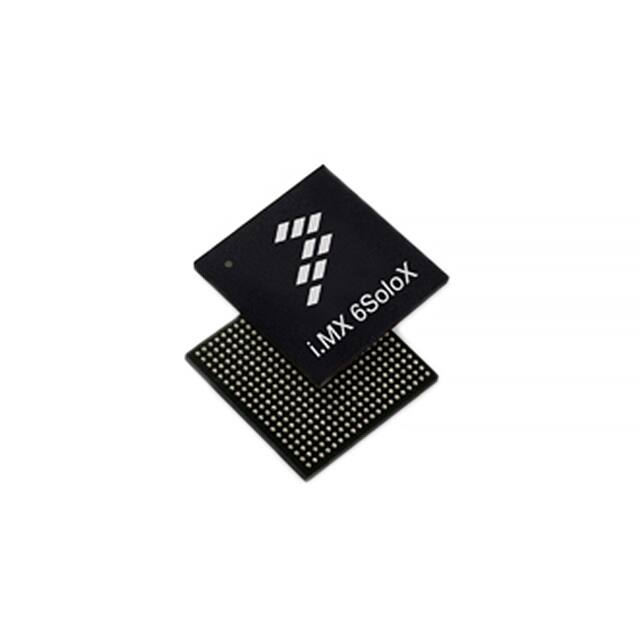

MCIMX6X1AVO08AB

Specifications

Jesd30 Code

S-PBGA-B400

Boundary Scan

YES

Nem Hassasiyeti (MSL)

3 (168 Hours)

Uzunluk

17mm

Voltage Io

1.8V 2.5V 2.8V 3.15V

Coprocessorsdsp

Multimedia; NEON™ MPE

Fabrika Tedarik Süresi

15 Weeks

Parça Durumu

Active

Graphics Acceleration

No

Display Interface Controllers

Keypad, LCD

RoHS Durumu

ROHS3 Compliant

Ram Words

144K

Maks. Oturma Yüksekliği

1.53mm

Bus Compatibility

CAN; ETHERNET; I2C; I2S; IRDA; RS-232; RS-485; SPI; UART; USB

Additional Interfaces

AC'97, CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPDIF, SPI, SSI, UART

Supply Voltagemax Vsup

1.5V

Kılıf / Paket

400-LFBGA

Upsucsperipheral Ics Type

MULTIFUNCTION PERIPHERAL

Security Features

A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE

Seri

i.MX6SX

Usb

USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2)

Yüzey Montaj

YES

Terminal Formu

BALL

Terminal Adımı

0.8mm

Core Processor

ARM® Cortex®-A9, ARM® Cortex®-M4

Terminal Sayısı

400

Number Of Coresbus Width

2 Core 32-Bit

External Data Bus Width

32

Yayın Yılı

2002

Number Of Ios

14

Address Bus Width

15

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~125°C TJ

Ethernet

10/100/1000Mbps (2)

Supply Voltagemin Vsup

1.275V

ECCN Kodu

5A992

Terminal Pozisyonu

BOTTOM

HTS Kodu

8542.31.00.01

Ram Controllers

LPDDR2, LVDDR3, DDR3

Speed

200MHz, 800MHz
