MCIMX6S4AVM08AC

Specifications

Display Interface Controllers

Keypad, LCD

Tepe Reflow Sıcaklığı (°C)

260

Fabrika Tedarik Süresi

15 Weeks

Parça Durumu

Active

Graphics Acceleration

Yes

Uzunluk

21mm

Nem Hassasiyeti (MSL)

3 (168 Hours)

Voltage Io

1.8V 2.5V 2.8V 3.3V

Coprocessorsdsp

Multimedia; NEON™ SIMD

Jesd30 Code

S-PBGA-B624

Boundary Scan

YES

Usb

USB 2.0 + PHY (4)

Yüzey Montaj

YES

Terminal Formu

BALL

Additional Interfaces

CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART

Supply Voltagemax Vsup

1.5V

Low Power Mode

YES

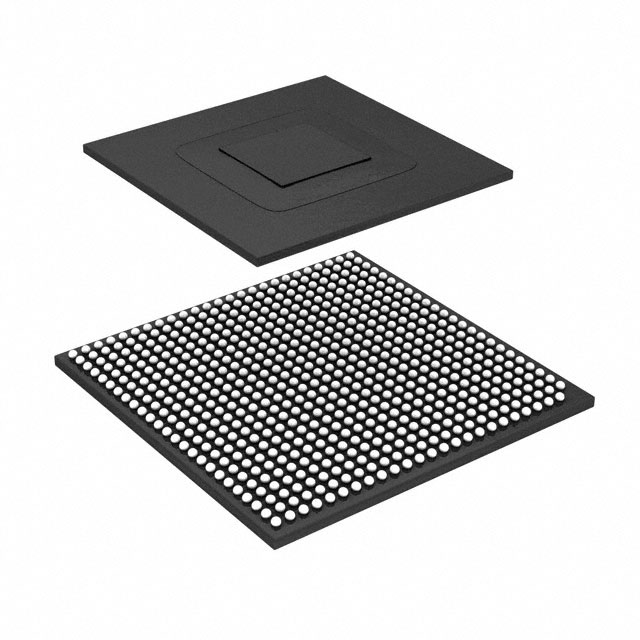

Kılıf / Paket

624-LFBGA

Upsucsperipheral Ics Type

MICROPROCESSOR, RISC

Security Features

ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection

Besleme Gerilimi

1.35V

Seri

i.MX6S

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Maks. Oturma Yüksekliği

1.6mm

RoHS Durumu

ROHS3 Compliant

Number Of Coresbus Width

1 Core 32-Bit

Bit Size

64

Clock Frequency

24MHz

Integrated Cache

YES

Core Processor

ARM® Cortex®-A9

Terminal Sayısı

624

Terminal Adımı

0.8mm

HTS Kodu

8542.31.00.01

Ram Controllers

LPDDR2, LVDDR3, DDR3

Format

FIXED POINT

Speed

800MHz

Ethernet

10/100/1000Mbps (1)

Supply Voltagemin Vsup

1.275V

ECCN Kodu

5A992

Terminal Pozisyonu

BOTTOM
