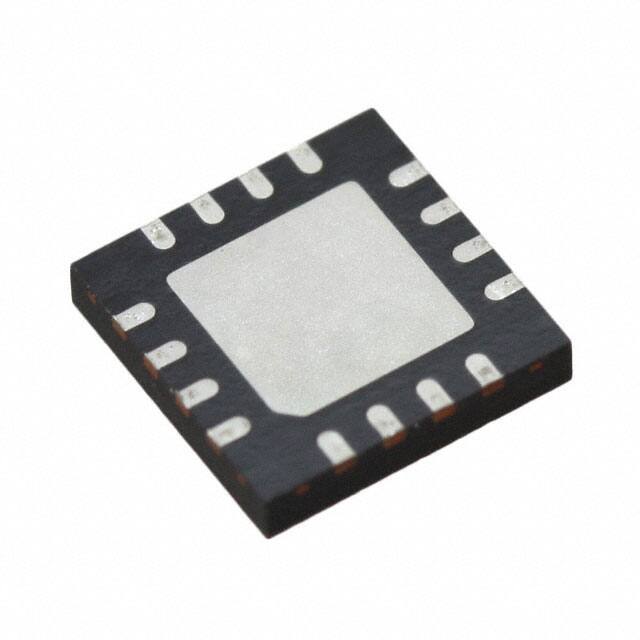

MC9S08QG4CFFE

Specifications

Voltage Supply Vccvdd

1.8V~3.6V

Program Memory Type

FLASH

Yüzey Montaj

YES

Uzunluk

5mm

Ambalaj

Tray

Speed

20MHz

Min Supply Voltage

1.8 V

Nem Hassasiyeti (MSL)

3 (168 Hours)

Peripherals

LVD, POR, PWM, WDT

Yayın Yılı

2003

Upsucsperipheral Ics Type

MICROCONTROLLER

Number Of Timerscounters

1

Supply Voltagemax Vsup

3.6V

Terminal Sayısı

16

Terminal Pozisyonu

QUAD

Casepackage

QFN

Clock Frequency

20MHz

Watchdog Timers

Yes

Program Memory Size

4KB 4K x 8

Genişlik

5mm

Maks. Çalışma Sıcaklığı

85 °C

Qualification Status

Not Qualified

Bit Size

8

Max Frequency

20 MHz

Pin Sayısı

16

Density

32 kb

Çalışma Sıcaklığı

-40°C~85°C TA

Kılıf / Paket

16-VQFN Exposed Pad

Jesd30 Code

S-XQCC-N16

Parça Durumu

Active

Number Of Adc Channels

8

Besleme Gerilimi

3V

Number Of Pwm Channels

2

RoHS Durumu

ROHS3 Compliant

Max Supply Voltage

3.6 V

Core Architecture

HCS08

Data Bus Width

8 b

Montaj Tipi

Surface Mount

Memory Size

4 kB

ECCN Kodu

3A991.A.2
