Specifications
- Supply Voltagemax Vsup
- 28V
- Ambalaj
- Tape & Reel (TR)
- Terminal Pozisyonu
- QUAD
- Interface
- SPI
- Output Currentmax
- 16A
- Besleme Gerilimi
- 5V~28V
- Voltage Load
- 5V~28V
- Terminal Sayısı
- 32
- Uzunluk
- 8mm
- Besleme Gerilimi
- 12V
- Yüzey Montaj
- YES
- ECCN Kodu
- EAR99
- Çalışma Sıcaklığı
- -40°C~150°C TJ
- Genişlik
- 8mm
- Tepe Reflow Sıcaklığı (°C)
- 260
- Terminal Formu
- NO LEAD
- Fonksiyon Sayısı
- 1
- Output Configuration
- Half Bridge (2)
- HTS Kodu
- 8542.39.00.01
- Fabrika Tedarik Süresi
- 20 Weeks
- Load Type
- Inductive
- RoHS Durumu
- ROHS3 Compliant

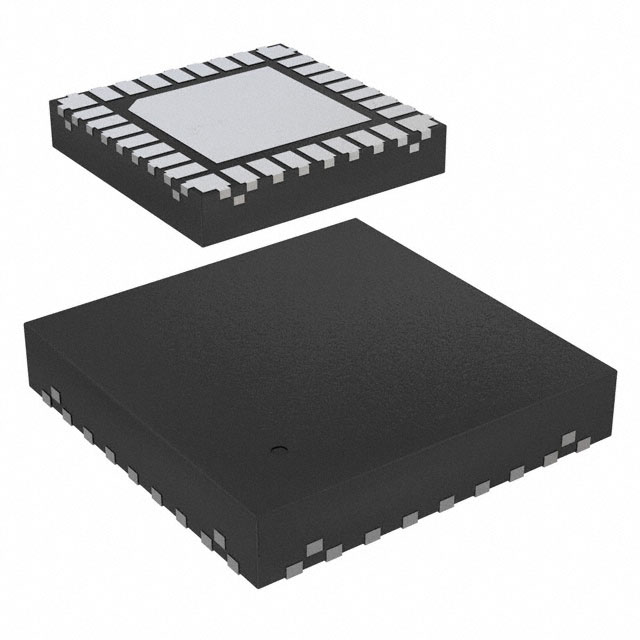

- Kılıf / Paket
- 32-PowerQFN
- Montaj Tipi
- Surface Mount
- Özellikler
- Slew Rate Controlled
- Rds On Typ
- 125m Ω LS (Max), 125m Ω HS (Max)
- Terminal Adımı
- 0.8mm
- Supply Voltagemin Vsup
- 5V
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Yayın Yılı
- 2016
- Fault Protection
- Over Temperature, Over Voltage, UVLO
- Analog Ic Other Type
- BRUSH DC MOTOR CONTROLLER
- Jesd30 Code
- S-PQCC-N32
- Applications
- DC Motors, General Purpose
- Parça Durumu
- Active
- Maks. Oturma Yüksekliği
- 2.2mm
