Specifications
- Montaj Tipi
- Surface Mount
- Kılıf / Paket

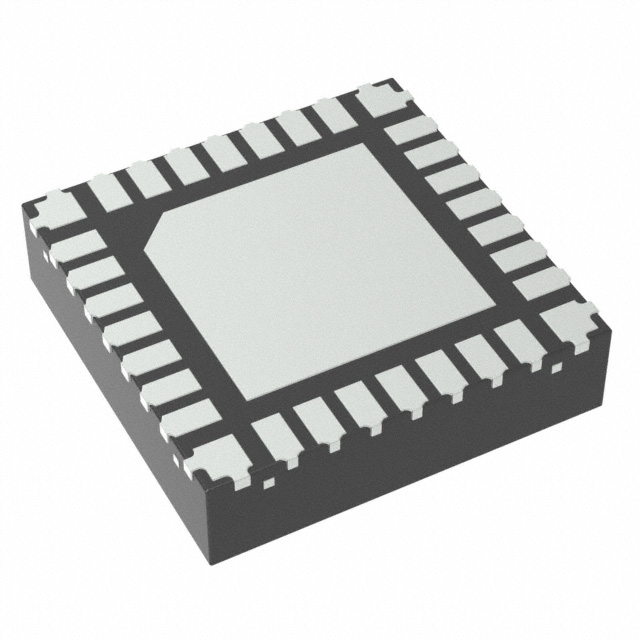

- 32-PowerQFN
- Özellikler
- Charge Pump, Slew Rate Controlled, Status Flag
- HTS Kodu
- 8542.39.00.01
- Fabrika Tedarik Süresi
- 20 Weeks
- Load Type
- Inductive
- Fonksiyon Sayısı
- 1
- Output Configuration
- Half Bridge
- RoHS Durumu
- ROHS3 Compliant
- Parça Durumu
- Active
- Jesd30 Code
- S-XQCC-N32
- Applications
- DC Motors, General Purpose
- Analog Ic Other Type
- BRUSH DC MOTOR CONTROLLER
- Maks. Oturma Yüksekliği
- 2.2mm
- Terminal Adımı
- 0.8mm
- Rds On Typ
- 235m Ω LS + HS (Max)
- Fault Protection
- Over Temperature, Short Circuit, UVLO
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Supply Voltagemin Vsup
- 5V
- Yayın Yılı
- 2017
- Interface
- Logic, PWM, SPI
- Terminal Pozisyonu
- QUAD
- Supply Voltagemax Vsup
- 28V
- Ambalaj
- Tray
- Yüzey Montaj
- YES
- Terminal Formu
- NO LEAD
- Çalışma Sıcaklığı
- -40°C~125°C TJ
- ECCN Kodu
- EAR99
- Tepe Reflow Sıcaklığı (°C)
- 260
- Genişlik
- 8mm
- Besleme Gerilimi
- 3.3V~5V
- Voltage Load
- 5V~28V
- Besleme Gerilimi
- 12V
- Uzunluk
- 8mm
- Terminal Sayısı
- 32
