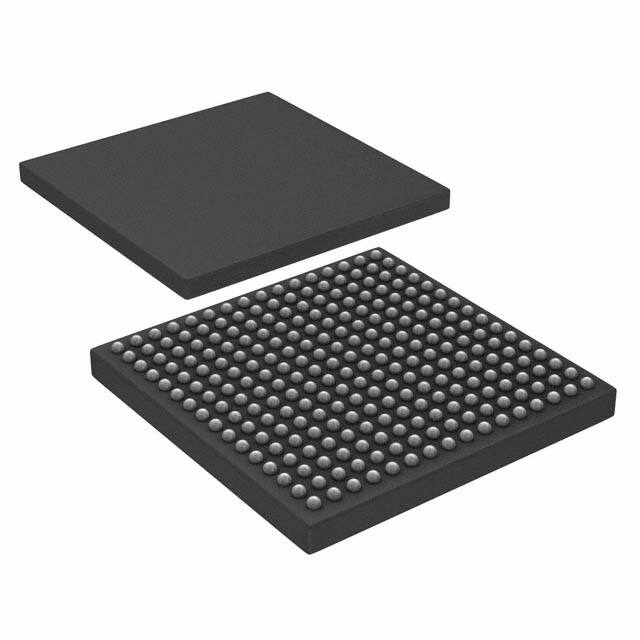

LPC4337JET256,551

Specifications

Core Size

32-Bit Dual-Core

JESD-609 Kodu

e1

Data Converters

A/D 8x10b; D/A 1x10b

Voltage Supply Vccvdd

2.2V~3.6V

Temel Parça No

LPC4337

Terminal Adımı

1mm

Montaj

Surface Mount

Cpu Family

CORTEX-M4

Fabrika Tedarik Süresi

12 Weeks

Terminal Formu

BALL

Montaj Tipi

Surface Mount

Core Processor

ARM® Cortex®-M4/M0

Reach Svhc

No SVHC

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

Maks. Çalışma Sıcaklığı

105 °C

Schedule B

8542310000

External Data Bus Width

32

Dma Channels

YES

Connectivity

CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, QEI, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG

Radyasyon Dayanımı

No

Dac Channels

YES

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Pin Sayısı

256

Ambalaj

Tray

Memory Types

FLASH

Nem Hassasiyeti (MSL)

3 (168 Hours)

RoHS Durumu

ROHS3 Compliant

Eeprom Size

16K x 8

Frekans

204 MHz

Terminal Sayısı

256

Seri

LPC43xx

Min Supply Voltage

2.2 V

Ram Size

136K x 8

Interface

CAN, EBI/EMI, Ethernet, I2C, I2S, IrDA, MMC, SD, SPI, SSP, UART, USART, USB

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Memory Size

1 MB

Address Bus Width

24

Pwm Channels

YES

Number Of Timerscounters

6

Jesd30 Code

S-PBGA-B256
