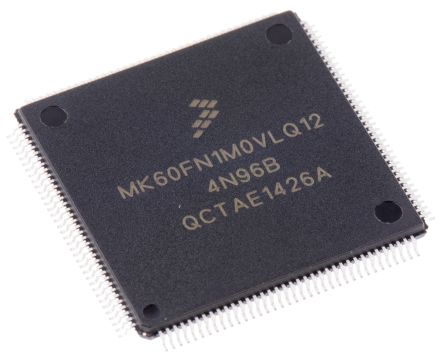

MK60FN1M0VLQ12

Specifications

Supply Voltagemax Vsup

3.6V

Yüzey Montaj

YES

Temel Parça No

MK60FN1M0

Ambient Temperature Range High

105 °C

Has Adc

YES

Dma Channels

YES

Romword

1048576

Number Of I2c Channels

2

Pin Sayısı

144

Number Of Spi Channels

3

Qualification Status

Not Qualified

Connectivity

CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG

Terminal Sayısı

144

Min Supply Voltage

1.71 V

Max Supply Voltage

3.6 V

Uzunluk

20 mm

Max Frequency

120 MHz

Supply Voltagemin Vsup

1.71V

Core Size

32-Bit

Number Of Pwm Channels

8

RoHS

Compliant

Terminal Pozisyonu

QUAD

Program Memory Size

1MB 1M x 8

Clock Frequency

50MHz

Kılıf / Paket

144-LQFP

Maks. Oturma Yüksekliği

1.6mm

Montaj Tipi

Surface Mount

ECCN Kodu

3A991.A.2

Memory Types

FLASH, SRAM

Parça Durumu

Active

Min. Çalışma Sıcaklığı

-40 °C

Jesd30 Code

S-PQFP-G144

Data Bus Width

32 b

Number Of Ios

100

Tepe Reflow Süresi (maks. sn)

40

Terminal Adımı

0.5mm

Program Memory Type

FLASH

Seri

Kinetis K60

Number Of Usb Channels

2

HTS Kodu

8542.31.00.01
