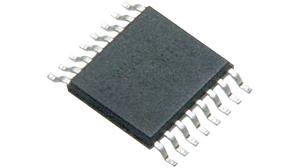

MC9S08PA8VTG

Specifications

Kurşunsuz

Lead Free

Reach Svhc

No SVHC

Number Of Adc Channels

12

Frekans

20 MHz

Oscillator Type

Internal

Halogen Free

Halogen Free

Number Of Programmable Io

37

Interface

I2C, LIN, SCI, SPI, UART, USART

Schedule B

8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|85

Min. Çalışma Sıcaklığı

-40 °C

Maks. Çalışma Sıcaklığı

105 °C

Genişlik

4.4 mm

Pin Sayısı

16

Contact Plating

Tin

Memory Types

FLASH

Max Frequency

20 MHz

Ram Size

2 kB

Yükseklik

1.2 mm

Montaj

Surface Mount

Number Of Timerscounters

2

Peripherals

LVD, POR, PWM, WDT

RoHS

Compliant

Number Of Ios

14

Watchdog Timers

Yes

Radyasyon Dayanımı

No

Number Of Uart Channels

2

Number Of Spi Channels

1

Casepackage

TSSOP

Data Bus Width

8 b

Memory Size

8 kB

Max Supply Voltage

5.5 V

Core Architecture

S08

Min Supply Voltage

2.7 V

Number Of I2c Channels

1

Uzunluk

5 mm
