Request a quote for pricing
Priced by quantity and lead time.
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

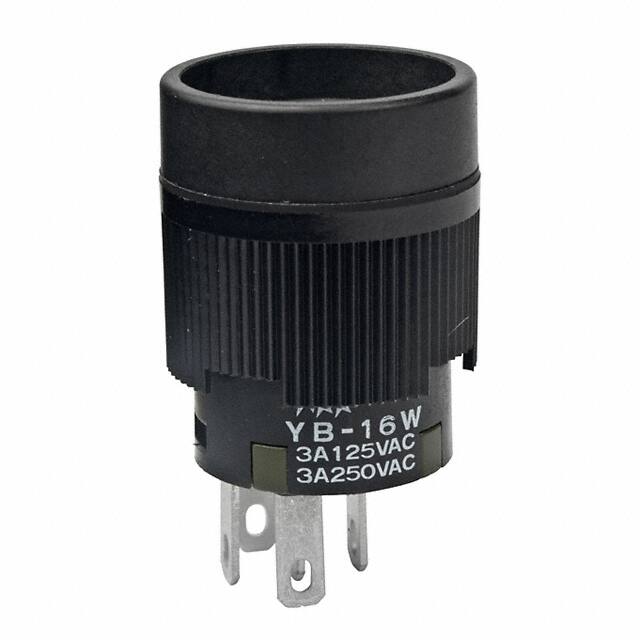

Specifications
- Circuit
- SPDT
- Life Cycles
- 100000 cycles
- Seri
- YB
- Parça Durumu
- Active
- Kurşunsuz Kodu
- yes
- Mechanical Life
- 200,000 Cycles
- Contact Resistance
- 0.05mOhm
- Current Rating Amps
- 3A AC/DC
- Tip
- Standard
- Switch Function
- On-On
- Actuator Type
- Plunger for Cap
- RoHS Durumu
- ROHS3 Compliant
- Electricallife
- 100,000 Cycles
- Flammability Rating
- UL94 V-0
- Dielectric Withstanding Voltage
- 1500VAC V
- Montaj Tipi
- Panel Mount, Front
- Contact Ac Max Rating R Load
- 3A@250VAC
- Ambalaj
- Bulk
- Terminal
- Solder
- Actuator Length
- 0.347 inch
- Actuator Travel
- 1.4986 mm
- Contact Currentdcmax
- 3A
- Montaj
- Bushing, Front, Panel
- Terminal Material
- PHOSPHOR BRONZE
- Contact Voltageacmax
- 250V
- Housing Material
- Polyamide
- Ratings
- Dust Tight, IP65, Water Resistant
- Bushing Length
- 0.37 inch
- Contact Currentacmax
- 3A
- Body Height
- 7.5946mm
- Insulation Resistance
- 200000000Ohm
- Fabrika Tedarik Süresi
- 9 Weeks
- Contact Plating
- Silver
- Yayın Yılı
- 2011
- Voltage Rated Dc
- 30V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Pcb Hole Count
- 5
- Çalışma Sıcaklığı
- -25°C~70°C
- Akım Değeri
- 3A
- Voltage Rated Ac
- 125V
