Volume pricing
- 1+ pcs$23.34
- 10+ pcs$22.02
- 100+ pcs$20.77
- 500+ pcs$19.60
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

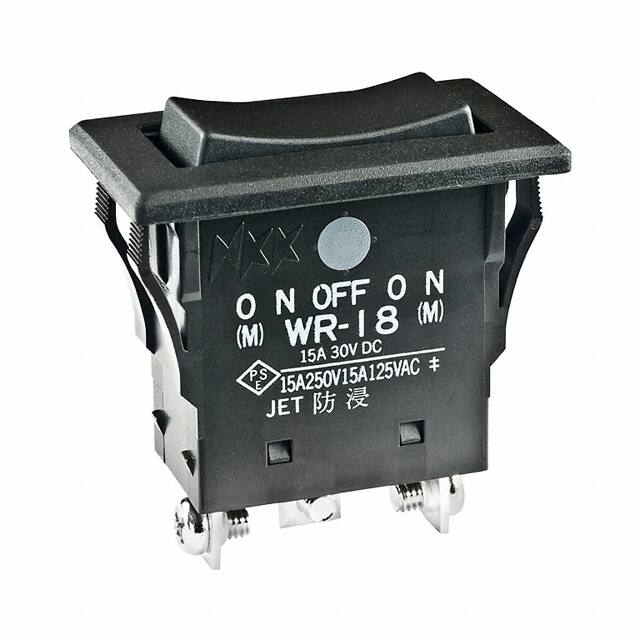

Specifications
- Switch Type
- ROCKER SWITCH
- Contact Resistance
- 0.01mOhm
- Current Rating Amps
- 15A AC/DC
- Actuator Length
- 0.209 inch
- Contact Voltageacmax
- 250V
- Seri
- WR
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Insulation Resistance
- 200000000Ohm
- Actuator Material
- POLYPHENYLENE OXIDE
- Actuator Type
- Concave (Curved)
- Contact Function
- (ON)-OFF-(ON)
- Parça Durumu
- Active
- Electricallife
- 10,000 Cycles
- Body Height
- 30.5816mm
- Circuit
- SPDT
- Contact Ac Max Rating R Load
- 15A@250VAC
- Montaj Tipi
- Panel Mount, Snap-In
- Ratings
- Dust Tight, IP67, Waterproof
- ECCN Kodu
- EAR99
- Voltage Rated Ac
- 125V
- Terminal
- Screw
- Özellikler
- Epoxy Sealed Terminals
- Body Length Or Diameter
- 40.9956mm
- Terminal Stili
- Screw Terminal
- Solderability
- HAND
- Voltage Rated Dc
- 30V
- Çalışma Sıcaklığı
- -25°C~85°C
- Ambalaj
- Bulk
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Switch Function
- Mom-Off-Mom
- Fabrika Tedarik Süresi
- 16 Weeks
- Panel Cutout Dimensions
- Rectangular - 34.20mm x 17.20mm
- Contact Plating
- Silver
- Contact Current Rating
- 15A
- Yayın Yılı
- 2014
- Actuator Marking
- No Marking
- Montaj
- Panel, Snap in
- Terminal Material
- BRASS
- Length Termination
- 0.327 inch
- Illumination Type
- Illuminated
