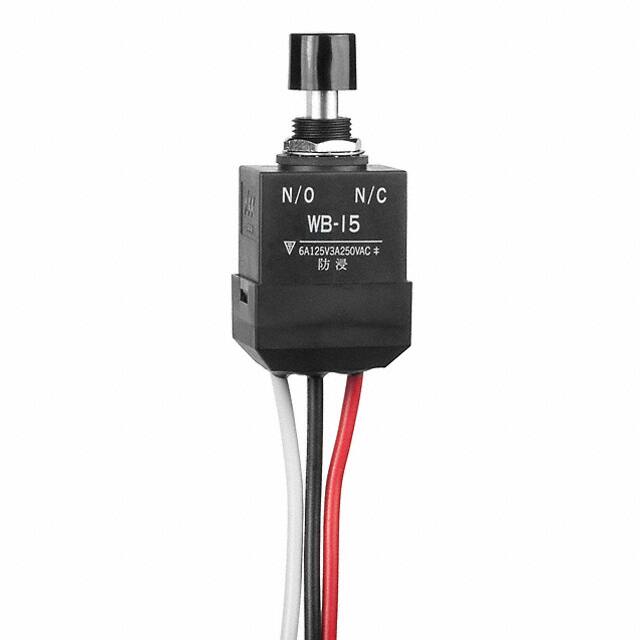

Specifications
- Electricallife
- 15,000 Cycles
- Current Rating Amps
- 6A AC/DC
- Voltage Rated Dc
- 30V
- Montaj Tipi
- Panel Mount, Rear
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- RoHS Durumu
- ROHS3 Compliant
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Özellikler
- Epoxy Sealed Terminals
- Genişlik
- 20.8mm
- Parça Durumu
- Active
- Montaj
- Panel
- Circuit
- SPDT
- Depth
- 20.8mm
- Seri
- WB
- Switch Function
- On-Mom
- Çalışma Sıcaklığı
- -30°C~70°C
- Fabrika Tedarik Süresi
- 9 Weeks
- Reach Svhc
- No SVHC
- Pozisyon Sayısı
- 2
- Akım Değeri
- 6A
- Orientation
- Vertical
- Housing Material
- Resin
- Contact Current Rating
- 6A
- Voltage Rated Ac
- 125V
- Mechanical Life
- 30,000 Cycles
- Terminal Stili
- Wire Leads
- Uzunluk
- 30.2mm
- Yayın Yılı
- 2010
- ECCN Kodu
- EAR99
- Actuator Material
- Brass
- Panel Cutout Dimensions
- Circular - 12.50mm Dia
- Color Actuatorcap
- Black
- Contact Materials
- Silver
- Kurşunsuz Kodu
- yes
- Terminal
- Wire Leads
- Max Voltage Rating Dc
- 30V
- Number Of Poles
- 1
- Actuator Type
- Round, Button
- Max Voltage Rating Ac
- 250V
- Tip
- Standard
