Volume pricing
- 1+ pcs$19.90
- 10+ pcs$18.77
- 100+ pcs$17.71
- 500+ pcs$16.70
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

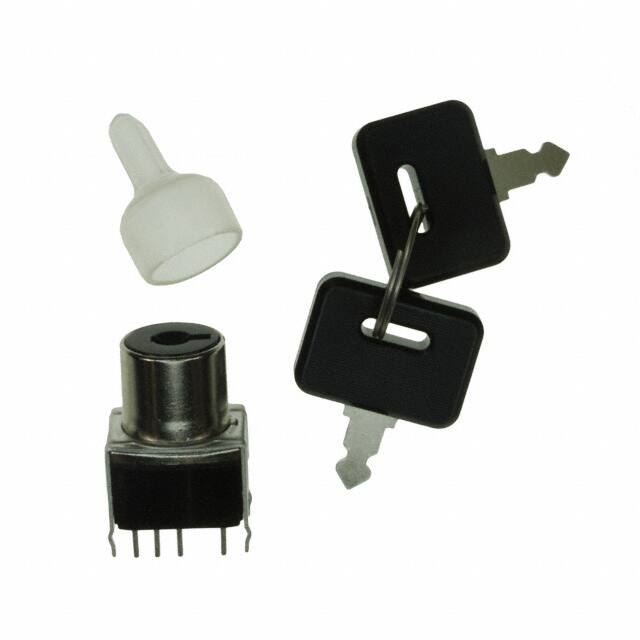

Specifications
- Max Voltage Rating Dc
- 28V
- Voltage Rated Ac
- 28V
- Çalışma Sıcaklığı
- -25°C~70°C
- Kurşunsuz
- Contains Lead
- RoHS Durumu
- ROHS3 Compliant
- Terminal
- PC Pin
- Pcb Hole Count
- 12
- Mechanical Life
- 30,000 Cycles
- Voltage Rated Dc
- 28V
- Insulation Resistance
- 100000000Ohm
- Uzunluk
- 15.74mm
- Switch Function
- On-On-On
- Circuit
- DP3T
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 13 Weeks
- Contact Resistance
- 0.08mOhm
- Key Removable Positions
- All
- Solderability
- WAVE
- Electricallife
- 10,000 Cycles
- Montaj
- Through Hole
- Yayın Yılı
- 2005
- Sealing
- MOLDED
- Switch Type
- KEYLOCK SWITCH
- Özellikler
- Process Sealed
- Kurşunsuz Kodu
- yes
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Timing
- Non-Shorting (BBM)
- Orientation
- Vertical
- Contact Materials
- Beryllium Copper
- Genişlik
- 10.2mm
- Contact Finish
- Gold
- Contact Style
- Non-Shorting
- Body Height
- 10.4902mm
- Contact Dc Max Power Rating R Load
- 0.4VA@28VDC
- Max Voltage Rating Ac
- 28V
- Actuator Type
- Flat Key
- Housing Material
- Polyamide
- Terminal Kaplaması
- Tin (Sn)
- Seri
- SK
- Pozisyon Sayısı
- 3
