Volume pricing
- 1+ pcs$20.43
- 10+ pcs$19.28
- 100+ pcs$18.18
- 500+ pcs$17.16
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

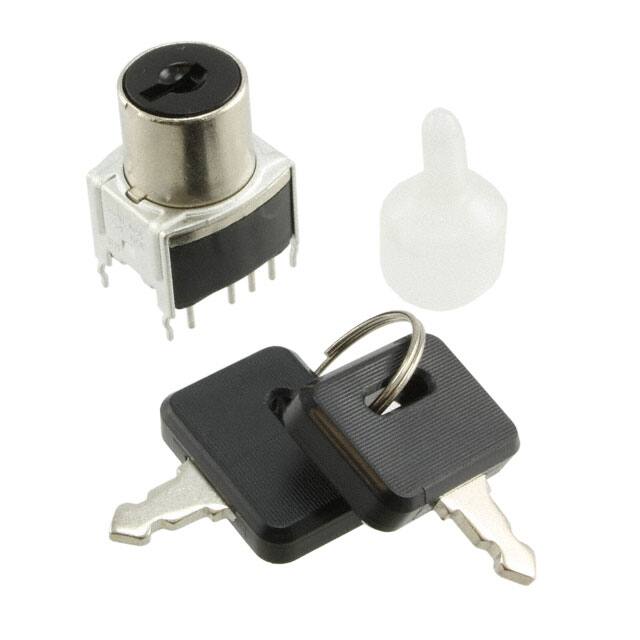

Specifications
- Mechanical Life
- 30,000 Cycles
- Contact Dc Max Power Rating R Load
- 0.4VA@28VDC
- Contact Materials
- Beryllium Copper
- Switch Function
- On-On-On
- Sealing
- MOLDED
- RoHS Durumu
- ROHS3 Compliant
- Contact Finish
- Gold
- Contact Resistance
- 0.08mOhm
- ECCN Kodu
- EAR99
- Pozisyon Sayısı
- 3
- Terminal
- PC Pin
- Kurşunsuz
- Contains Lead
- Montaj
- Through Hole
- Max Voltage Rating Ac
- 28V
- Uzunluk
- 15.74mm
- Fabrika Tedarik Süresi
- 13 Weeks
- Current Rating Amps
- 0.4VA AC/DC
- Pcb Hole Count
- 12
- Dielectric Withstanding Voltage
- 500VAC V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Body Height
- 10.4902mm
- Voltage Rated Ac
- 28V
- JESD-609 Kodu
- e3
- Voltage Rated Dc
- 28V
- Depth
- 14.5mm
- Yayın Yılı
- 2006
- Key Removable Positions
- 2 only
- Terminal Kaplaması
- Tin (Sn)
- Additional Feature
- KEY REMOVABLE POSITION 2
- Contact Timing
- Non-Shorting (BBM)
- Circuit
- SP3T
- Washability
- SOLVENT
- Max Voltage Rating Dc
- 28V
- Electricallife
- 10,000 Cycles
- Housing Material
- Polyamide
- Contact Style
- Non-Shorting
- Max Current Rating
- 100mA
- Özellikler
- Process Sealed
- Solderability
- WAVE
- Kurşunsuz Kodu
- yes
