Volume pricing
- 1+ pcs$18.72
- 10+ pcs$17.66
- 100+ pcs$16.66
- 500+ pcs$15.72
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Terminal Kaplaması
- Tin (Sn)
- Contact Timing
- Non-Shorting (BBM)
- Circuit
- SP3T
- Washability
- SOLVENT
- Max Voltage Rating Dc
- 28V
- Electricallife
- 10,000 Cycles
- Reach Svhc
- No SVHC
- Housing Material
- Polyamide
- Material
- Metal
- Max Current Rating
- 100mA
- Contact Style
- Non-Shorting
- Özellikler
- Process Sealed
- Solderability
- WAVE
- Kurşunsuz Kodu
- yes
- Seri
- SK

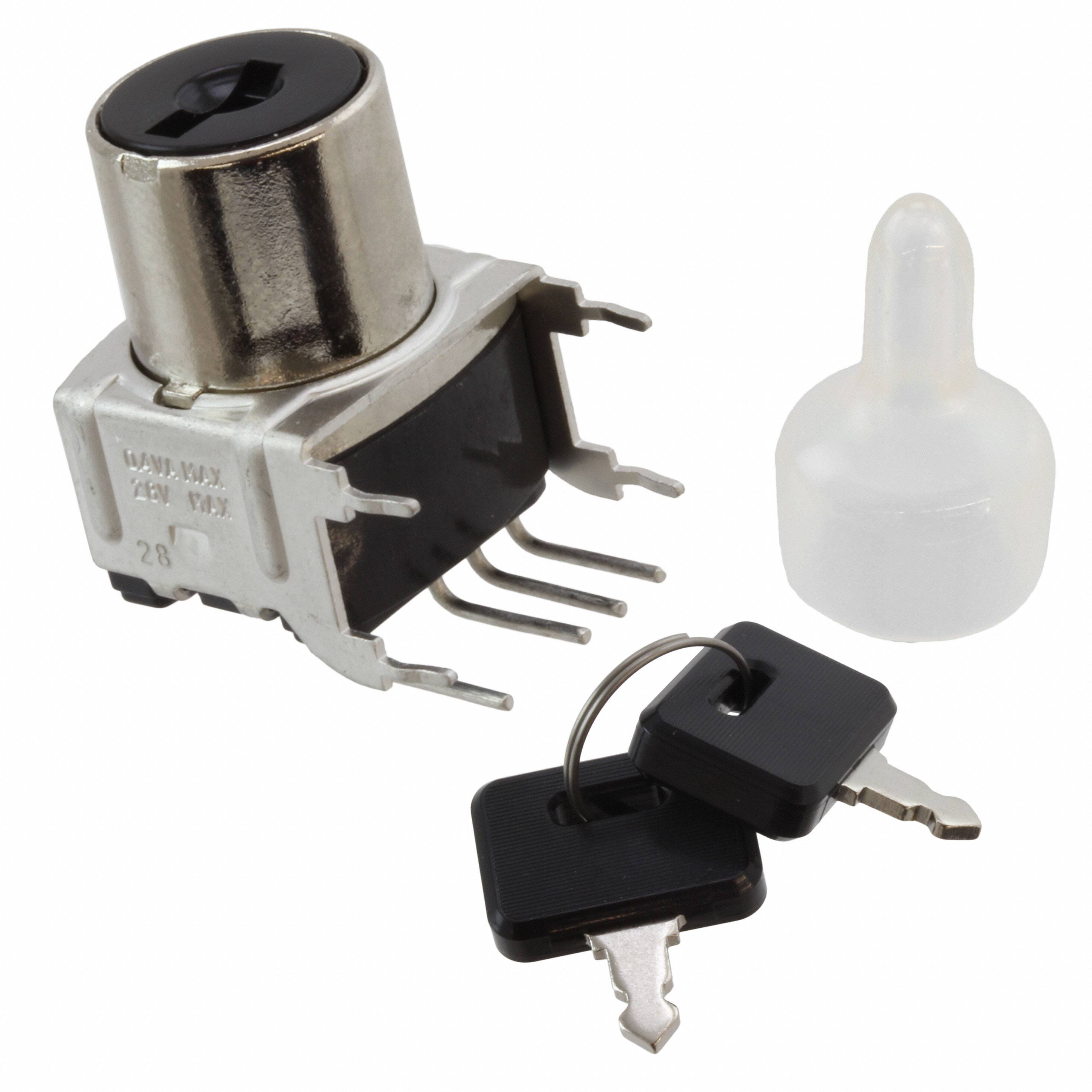

- Switch Type
- KEYLOCK SWITCH
- Orientation
- Right Angle
- Genişlik
- 15.2mm
- Index Angle
- 45 °
- Montaj Tipi
- Through Hole, Right Angle
- Parça Durumu
- Active
- Insulation Resistance
- 100000000Ohm
- Terminal Stili
- PC Pin
- Bushing Type
- UNTHREADED
- Çalışma Sıcaklığı
- -25°C~70°C
- Actuator Type
- Flat Key
- Mechanical Life
- 30,000 Cycles
- Contact Dc Max Power Rating R Load
- 0.4VA@28VDC
- Contact Current Rating
- 100mA
- Switching Voltage
- 28V
- Contact Materials
- Beryllium Copper
- Sealing
- MOLDED
- Switch Function
- On-On-On
- RoHS Durumu
- ROHS3 Compliant
- Contact Resistance
- 0.08mOhm
- Contact Finish
- Gold
- ECCN Kodu
- EAR99
- Pozisyon Sayısı
- 3
- Body Breadth
- 15.24 mm
- Terminal
- PC Pin
