Volume pricing
- 1+ pcs$16.36
- 10+ pcs$15.43
- 100+ pcs$14.56
- 500+ pcs$13.74
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

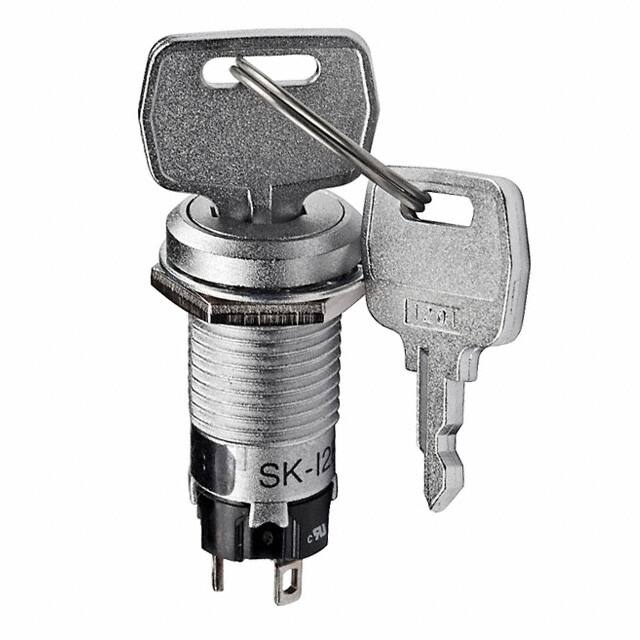

Specifications
- Body Height
- 9.4996mm
- Switch Type
- KEYLOCK SWITCH
- Montaj
- Panel
- Panel Cutout Dimensions
- Circular - 12.00mm Dia
- Solderability
- HAND
- Seri
- SK
- Length Termination
- 0.177 inch
- Contact Style
- Non-Shorting
- Parça Durumu
- Active
- Montaj Tipi
- Panel Mount
- RoHS Durumu
- ROHS3 Compliant
- Akım Değeri
- 3A
- Kurşunsuz Kodu
- yes
- Switch Function
- On-On
- Voltage Rated Ac
- 125V
- Contact Resistance
- 0.01mOhm
- Circuit
- SPDT
- Özellikler
- Epoxy Sealed Terminals
- Terminal
- Solder
- Mechanical Life
- 30,000 Cycles
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Housing Material
- ZINC ALLOY
- Depth Behind Flange
- 27.00mm
- Index Angle
- 90 °
- Dielectric Withstanding Voltage
- 1500VAC V
- Contact Materials
- Silver (Ag)
- Insulation Resistance
- 1000000000Ohm
- Terminal Stili
- Solder Lug
- Contact Currentacmax
- 3A
- Kurşunsuz
- Lead Free
- Key Removable Positions
- 1 only
- Contact Timing
- Non-Shorting (BBM)
- Actuator Type
- Flat Key
- Current Rating Amps
- 3A AC
- Electricallife
- 10,000 Cycles
- Actuator Length
- 0.118 inch
- Insulation Materials
- PHENOLIC
- Çalışma Sıcaklığı
- -25°C~70°C
- Pozisyon Sayısı
- 2
- Fabrika Tedarik Süresi
- 5 Weeks
