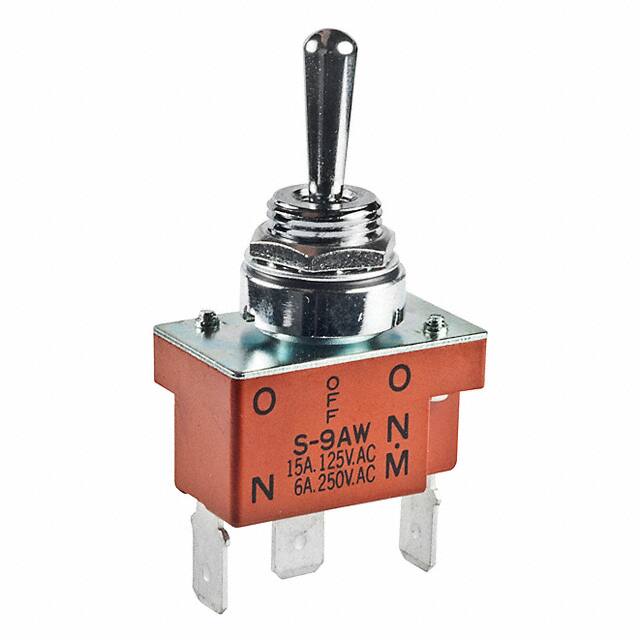

S9AWF

Specifications

Voltage Rated Dc

30V

Contact Currentacmax

6A

Voltage Rated Ac

125V

Terminal Stili

Quick Connect - 0.250 (6.3mm)

Bushing Thread

M12 x 1

Current Rating Amps

15A AC 20A DC

Actuator Material

Brass, Chrome Plated

Insulation Materials

PHENOLIC

Terminal

Quick Connect

Ratings

Dust Tight, IP67, Waterproof

Çalışma Sıcaklığı

-30°C~70°C

Solderability

HAND

Switch Function

On-Off-Mom

Ambalaj

Bulk

Ingress Protection

IP67 - Dust Tight, Waterproof

Body Height

18.0086mm

Length Termination

0.465 inch

JESD-609 Kodu

e3

Panel Cutout Dimensions

Circular - 12.50mm Dia

Contact Resistance

0.01mOhm

HTS Kodu

8536.50.90.40

Bushing Length

0.295 inch

ECCN Kodu

EAR99

Body Breadth

18.0086 mm

Contact Voltageacmax

250V

Contact Function

ON-OFF-(ON)

Reach Svhc

No SVHC

Circuit

SPDT

Illumination

Non-Illuminated

Bushing Type

M12P1

Kurşunsuz Kodu

yes

Montaj Tipi

Panel Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz

Lead Free

Actuator Length

17.50mm

Actuator Type

Standard Round

Body Length Or Diameter

29.9974mm

Seri

S

Parça Durumu

Active

Akım Değeri

20A
