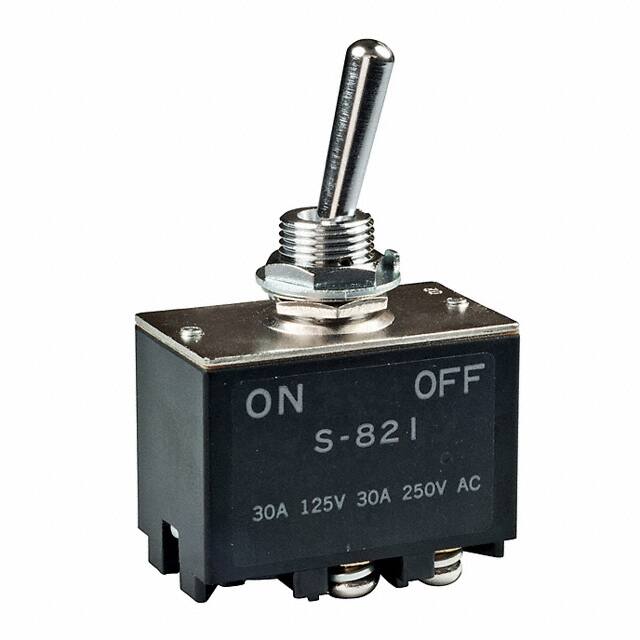

S821/C-UL

Specifications

Seri

S

Bushing Length

0.472 inch

Kurşunsuz Kodu

yes

Montaj Tipi

Panel Mount

Yüzey Montaj

NO

Insulation Resistance

1000000000Ohm

Parça Durumu

Active

Fabrika Tedarik Süresi

9 Weeks

Current Rating Amps

30A AC/DC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Bushing Type

M12P1

Body Height

34.0106mm

Bushing Thread

M12 x 1

Voltage Rated Ac

125V

Terminal Stili

Screw Terminal

Dielectric Withstanding Voltage

2000VAC V

Actuator Type

Standard Round

Voltage Rated Dc

30V

Çalışma Sıcaklığı

-10°C~70°C

Actuator Length

22.00mm

Circuit

DPST

Switch Function

On-Off

Contact Voltagedcmax

30V

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Actuator Material

Brass, Chrome Plated

Illumination

Non-Illuminated

Contact Ac Max Rating R Load

30A@250VAC

Body Length Or Diameter

42.0116mm

Electricallife

25,000 Cycles

Contact Resistance

0.01mOhm

Contact Currentdcmax

30A

Panel Cutout Dimensions

Circular - 12.50mm Dia

Contact Currentacmax

30A

Body Breadth

24.003 mm

Contact Voltageacmax

250V
