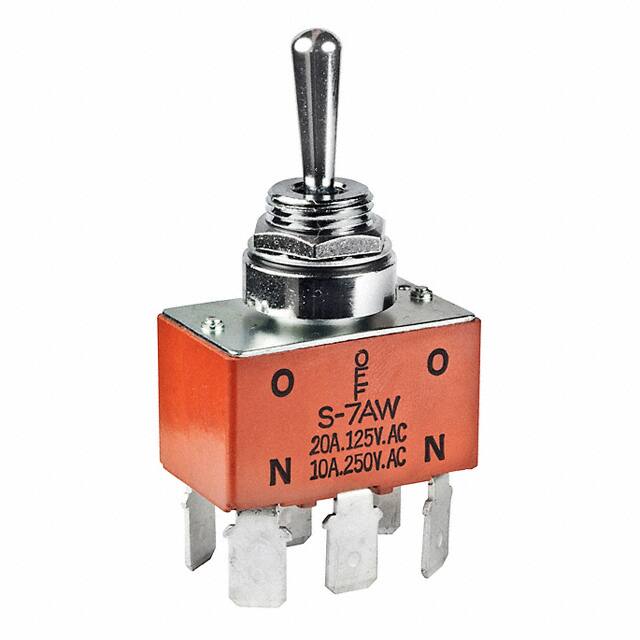

S7AWF

Specifications

Illumination

Non-Illuminated

Ratings

Dust Tight, IP67, Waterproof

Bushing Length

0.295 inch

Contact Currentacmax

10A

Contact Voltageacmax

250V

Insulation Resistance

1000000000Ohm

Bushing Type

M12P1

Body Height

20.0152mm

Fabrika Tedarik Süresi

5 Weeks

Bushing Thread

M12 x 1

Voltage Rated Dc

30V

Çalışma Sıcaklığı

-30°C~70°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

31.1912mm

Length Termination

0.461 inch

Body Breadth

18.5928 mm

Terminal Stili

Quick Connect - 0.250 (6.3mm)

Akım Değeri

20A

Voltage Rated Ac

125V

Panel Cutout Dimensions

Circular - 12.50mm Dia

Ingress Protection

IP67 - Dust Tight, Waterproof

Kurşunsuz Kodu

yes

Contact Resistance

0.01mOhm

Current Rating Amps

20A AC/DC

Solderability

HAND

Circuit

DPDT

Seri

S

Parça Durumu

Active

Actuator Type

Standard Round

Switch Function

On-Off-On

Electricallife

25,000 Cycles

RoHS Durumu

ROHS3 Compliant

Actuator Material

Brass, Chrome Plated

Ambalaj

Bulk

Contact Ac Max Rating R Load

10A@250VAC

Montaj Tipi

Panel Mount

Terminal

Quick Connect

Dielectric Withstanding Voltage

2000VAC V

Actuator Length

17.50mm

Montaj

Panel
