Specifications
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Insulation Resistance
- 1000000000Ohm
- Panel Cutout Dimensions
- Circular - 12.50mm Dia
- JESD-609 Kodu
- e3
- Max Current Rating
- 15A
- Terminal Kaplaması
- Tin (Sn)
- Circuit
- DPST
- Voltage Rated Ac
- 125V
- Ambalaj
- Bulk
- Actuator Length
- 17.50mm
- Bushing Thread
- M12 x 1
- HTS Kodu
- 8536.50.90.65
- Parça Durumu
- Active
- Kurşunsuz
- Lead Free
- Terminal
- Screw
- Uzunluk
- 33.2mm

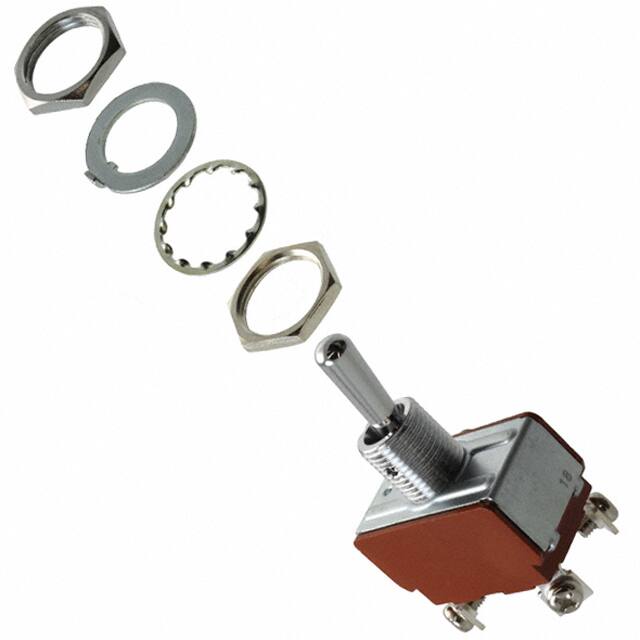

- Switch Type
- TOGGLE SWITCH
- Contact Dc Max Rating R Load
- 15A@30VDC
- Illumination
- Non-Illuminated
- Seri
- S300
- Contact Materials
- Brass, Silver
- Max Voltage Rating Dc
- 30V
- Additional Feature
- HIGH RATED
- Çalışma Sıcaklığı
- -10°C~70°C
- Kurşunsuz Kodu
- yes
- Contact Resistance
- 0.01mOhm
- Montaj Tipi
- Panel Mount
- Pozisyon Sayısı
- 2
- Current Rating Amps
- 15A AC 20A DC
- Actuator Type
- Standard Round
- Orientation
- Vertical
- Switch Function
- On-Off
- Max Voltage Rating Ac
- 250V
- Reach Svhc
- Unknown
- Contact Current Rating
- 15A
- Voltage Rated Dc
- 30V
- Akım Değeri
- 20A
- Montaj
- Panel
- Contact Plating
- Silver
- Fabrika Tedarik Süresi
- 9 Weeks
