Request a quote for pricing
Priced by quantity and lead time.
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Additional Feature
- HIGH RATED
- JESD-609 Kodu
- e3
- Ambalaj
- Bulk
- Number Of Poles
- 1
- Contact Current Rating
- 20A
- Voltage Rated Ac
- 125V
- ECCN Kodu
- EAR99
- Terminal Stili
- Screw Terminal
- Orientation
- Vertical
- Montaj
- Panel
- Depth
- 16mm

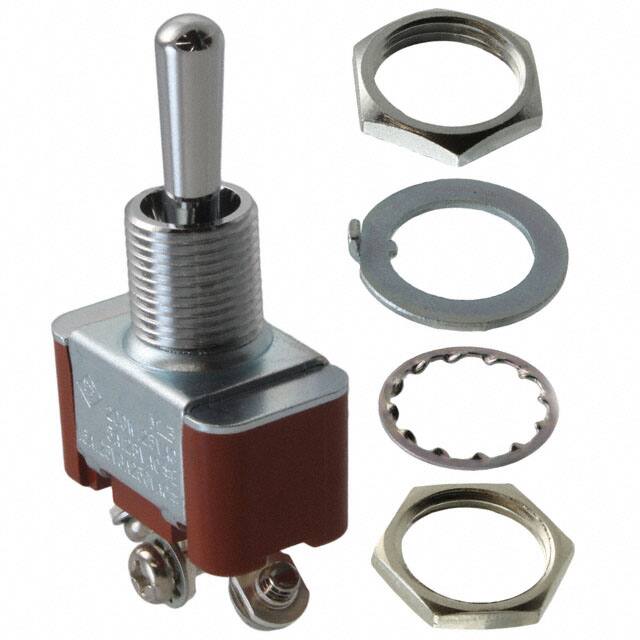

- Switch Type
- TOGGLE SWITCH
- Actuator Type
- Standard Round
- Contact Currentacmax
- 6A
- Akım Değeri
- 20A
- RoHS Durumu
- ROHS3 Compliant
- Uzunluk
- 28.5mm
- Current Rating Amps
- 15A AC 20A DC
- Pozisyon Sayısı
- 3
- Electricallife
- 25,000 Cycles
- Illumination Type
- Illuminated, Non-Illuminated
- Circuit
- SPDT
- Seri
- S300
- Fabrika Tedarik Süresi
- 5 Weeks
- Çalışma Sıcaklığı
- -10°C~70°C
- Actuator Length
- 17.50mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Timing
- BREAK-BEFORE-MAKE
- Max Voltage Rating Ac
- 250V
- Illumination
- Non-Illuminated
- Max Current Rating
- 20A
- Bushing Thread
- M12 x 1
- Parça Durumu
- Active
- Kurşunsuz Kodu
- yes
- Max Voltage Rating Dc
- 30V
- Actuator Material
- Brass, Chrome Plated
- Terminal Kaplaması
- Tin (Sn)
- Panel Cutout Dimensions
- Circular - 12.50mm Dia
- Contact Ac Max Rating R Load
- 6A@250VAC
- Montaj Tipi
- Panel Mount
