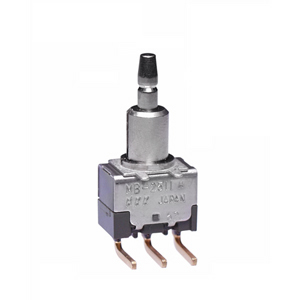

MB2511S2G30

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Parça Durumu

Active

Yayın Yılı

2014

Terminal

PC Pin

Actuator Finish

NICKEL

Body Height

14.4272mm

Actuator Travel

0.9906 mm

Voltage Rated Dc

28V

Ambalaj

Bulk

Actuator Material

BRASS

Fabrika Tedarik Süresi

12 Weeks

Montaj

Through Hole

Circuit

SPDT

Electricallife

100,000 Cycles

Center Contact Material

COPPER

RoHS Durumu

ROHS3 Compliant

Mechanical Life

200,000 Cycles

Voltage Rated Ac

28V

Power Rating

400mW

Contact Resistance

0.03mOhm

Switch Function

On-Mom

Length Termination

0.169 inch

Tip

Standard

Bushing Length

0.3 inch

Body Length Or Diameter

13.0048mm

Actuator Type

Plunger for Cap

Seri

MB2500

Body Breadth

7.8994 mm

Contact Function

ON-(ON)

Dielectric Withstanding Voltage

1500VAC V

Housing Material

STAINLESS STEEL

Pcb Hole Count

5

Insulation Resistance

1000000000Ohm

Kurşunsuz Kodu

yes

Contact Plating

Gold

Bushing Diameter

0.244 inch

Montaj Tipi

Through Hole, Right Angle

Current Rating Amps

0.4VA AC/DC

Terminal Stili

PC Pin
