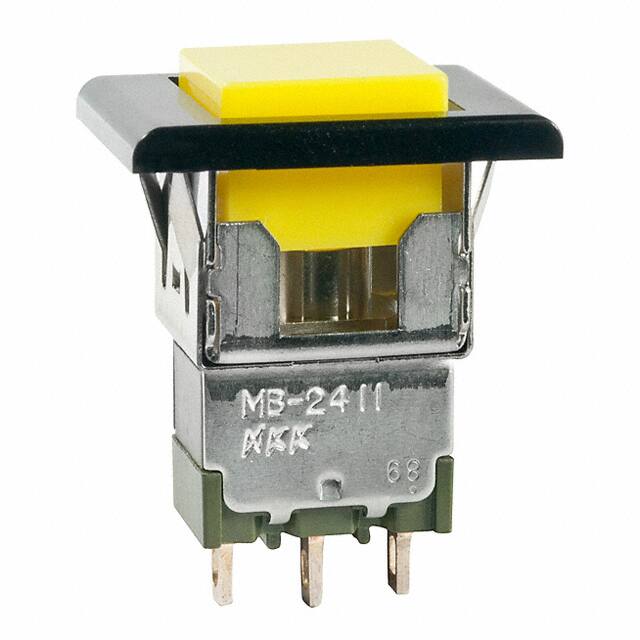

MB2411JW01-E-1A

Specifications

Terminal

Solder

Yayın Yılı

2011

ECCN Kodu

EAR99

Contact Resistance

0.02mOhm

RoHS Durumu

ROHS3 Compliant

Flammability Rating

UL94 V-0

Mechanical Life

200,000 Cycles

Circuit

SPDT

Electricallife

25,000 Cycles

Panel Cutout Dimensions

Rectangular - 15.00mm x 12.50mm

Tip

Standard

Seri

MB2400

Contact Ac Max Rating R Load

3A@125VAC

Body Breadth

7.8994 mm

Dielectric Withstanding Voltage

1500VAC V

Additional Feature

BLACK BEZEL

Length Termination

0.157 inch

Akım Değeri

3A

Illumination Type

Illuminated

Current Rating Amps

3A AC

JESD-609 Kodu

e4

Terminal Stili

Solder Lug

Color Actuatorcap

Yellow

Kurşunsuz

Contains Lead

Fabrika Tedarik Süresi

12 Weeks

Montaj

Panel, Snap in

Actuator Travel

4.445 mm

Solderability

WAVE

Ambalaj

Bulk

Actuator Material

POLYCARBONATE

Actuator Finish

GLOSS

Body Height

28.194mm

Çalışma Sıcaklığı

-30°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Switch Function

On-Mom

Voltage Rated Ac

125V

Contact Currentacmax

3A

REACH Uyumluluk Kodu

not_compliant

Kurşunsuz Kodu

yes
