Volume pricing
- 1+ pcs$26.53
- 10+ pcs$25.02
- 100+ pcs$23.61
- 500+ pcs$22.27
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

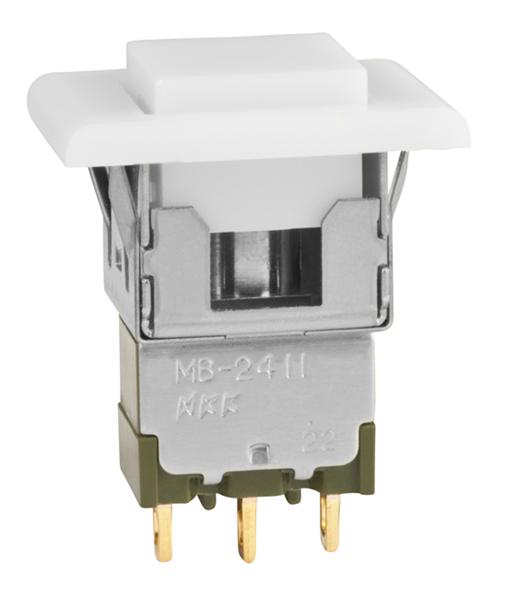

Specifications
- Kurşunsuz Kodu
- yes
- Insulation Resistance
- 1000000000Ohm
- Panel Cutout Dimensions
- Rectangular - 15.00mm x 12.50mm
- Body Breadth
- 7.8994 mm
- Contact Function
- ON-(ON)
- Dielectric Withstanding Voltage
- 1500VAC V
- Housing Material
- Resin
- Tip
- Standard
- Body Length Or Diameter
- 13.9954mm
- Actuator Type
- Square, Button
- Seri
- MB2400
- Length Termination
- 0.157 inch
- Illumination Type
- Illuminated
- Actuator Length
- 0.331 inch
- Özellikler
- Epoxy Sealed Terminals
- Current Rating Amps
- 0.4VA AC/DC
- Terminal Stili
- Solder Lug
- JESD-609 Kodu
- e4
- Montaj Tipi
- Panel Mount, Snap-In
- Terminal Material
- COPPER ALLOY
- Color Actuatorcap
- White
- Contact Plating
- Gold
- Montaj
- Panel, Snap in
- Fabrika Tedarik Süresi
- 8 Weeks
- Solderability
- WAVE
- Actuator Material
- POLYCARBONATE
- Ambalaj
- Bulk
- Voltage Rated Dc
- 28V
- Actuator Travel
- 4.445 mm
- Actuator Finish
- GLOSS
- Terminal
- Solder
- Body Height
- 28.194mm
- End Contact Material
- COPPER ALLOY
- Yayın Yılı
- 2011
- Parça Durumu
- Active
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Çalışma Sıcaklığı
- -30°C~85°C
- Switch Function
- On-Mom
- ECCN Kodu
- EAR99
- Contact Resistance
- 0.03mOhm
