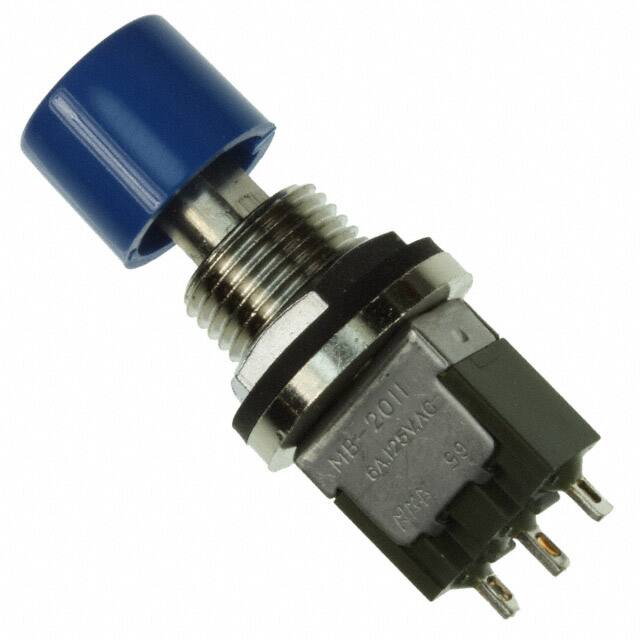

Specifications
- Actuator Travel
- 1.8034 mm
- Contact Function
- ON-(ON)
- Seri
- MB2000
- Flammability Rating
- UL94 V-0
- Voltage Rated Ac
- 125V
- Contact Ac Max Rating R Load
- 3A@250VAC
- Terminal Material
- COPPER ALLOY
- Body Breadth
- 7.8994 mm
- Additional Feature
- SPLASH-PROOF BUSHING
- Actuator Material
- POLYSTYRENE
- Montaj
- Panel
- Ratings
- Dust Tight, IP67, Waterproof
- Contact Resistance
- 0.01mOhm
- Kurşunsuz Kodu
- yes
- Switch Function
- On-Mom
- Voltage Rated Dc
- 30V
- Contact Voltageacmax
- 250V
- Tip
- Standard
- Color Actuatorcap
- Blue
- Contact Currentacmax
- 3A
- Body Height
- 43.9674mm
- Montaj Tipi
- Panel Mount, Rear
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Fabrika Tedarik Süresi
- 8 Weeks
- Circuit
- SPDT
- Özellikler
- Epoxy Sealed Terminals
- Body Length Or Diameter
- 13.0048mm
- Contact Plating
- Silver
- Terminal
- Solder
- Actuator Type
- Round, Button
- Actuator Length
- 0.59 inch
- Akım Değeri
- 3A
- Solderability
- WAVE
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Active
- JESD-609 Kodu
- e4
- Housing Material
- Resin
- Bushing Length
- 0.472 inch
- REACH Uyumluluk Kodu
- not_compliant
- Dielectric Withstanding Voltage
- 1500VAC V
