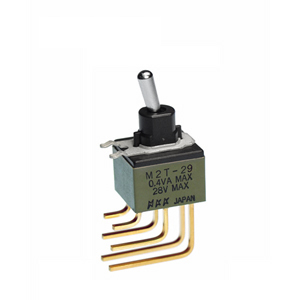

M2T29S4A5G40

Specifications

Length Termination

0.165 inch

Terminal Material

COPPER ALLOY

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

1500VAC V

Özellikler

Process Sealed

Seri

M2

Ambalaj

Bulk

End Contact Material

COPPER ALLOY

Current Rating Amps

0.4VA AC/DC

Insulation Resistance

1000000000Ohm

Actuator Material

Brass, Chrome Plated

Switch Function

On-Off-Mom

Switch Type

TOGGLE SWITCH

Terminal Kaplaması

GOLD/SILVER

Terminal Stili

PC Pin

REACH Uyumluluk Kodu

not_compliant

Sealing

EPOXY

Bushing Length

0.25 inch

Montaj Tipi

Through Hole, Right Angle, Vertical

Body Height

34.6964mm

Body Breadth

11.5062 mm

Electricallife

50,000 Cycles

Fabrika Tedarik Süresi

8 Weeks

Pcb Hole Count

8

Voltage Rated Ac

28V

Montaj

Through Hole, Vertical

JESD-609 Kodu

e4

Center Contact Plating

GOLD OVER NICKEL

Body Length Or Diameter

12.7mm

Parça Durumu

Obsolete

Çalışma Sıcaklığı

-30°C~85°C

Actuator Length

7.62mm

Kurşunsuz Kodu

yes

Housing Material

GLASS FILLED REINFORCED NYLON

Bushing Thread

Unthreaded

Insulation Materials

GLASS FILLED POLYAMIDE

Center Contact Material

COPPER ALLOY

Voltage Rated Dc

28V

Actuator Type

Standard Round
