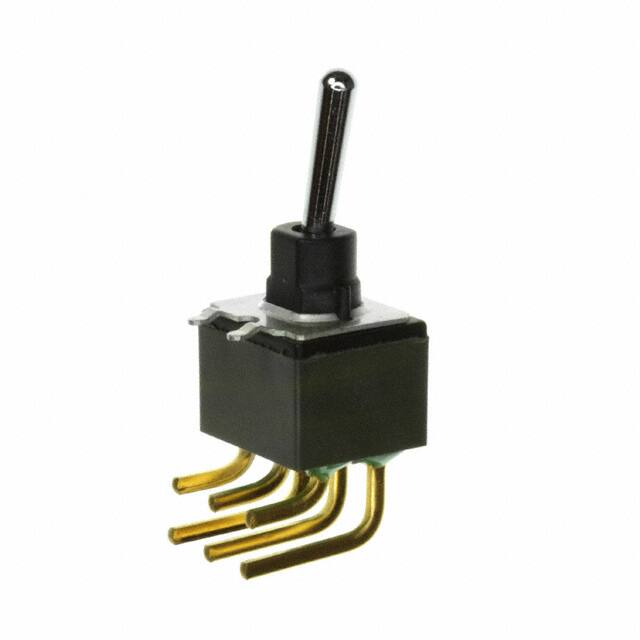

M2T25SA5G30

Specifications

Ambalaj

Bulk

End Contact Material

COPPER ALLOY

Insulation Resistance

1000000000Ohm

Actuator Material

Brass, Chrome Plated

Switch Function

On-Mom

Current Rating Amps

0.4VA AC/DC

Terminal Material

COPPER ALLOY

Length Termination

0.146 inch

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

1500VAC V

Seri

M2

Özellikler

Process Sealed

Body Height

36.195mm

Body Breadth

11.5062 mm

Electricallife

50,000 Cycles

Fabrika Tedarik Süresi

15 Weeks

Pcb Hole Count

8

Montaj

Through Hole

Voltage Rated Ac

28V

JESD-609 Kodu

e4

Terminal Stili

PC Pin

Switch Type

TOGGLE SWITCH

REACH Uyumluluk Kodu

not_compliant

Sealing

EPOXY

Bushing Length

0.25 inch

Montaj Tipi

Through Hole, Right Angle

Illumination Type

Illuminated, Non-Illuminated

Bushing Thread

Unthreaded

Body Length Or Diameter

12.7mm

Parça Durumu

Obsolete

Çalışma Sıcaklığı

-30°C~85°C

Actuator Length

12.70mm

Kurşunsuz Kodu

yes

Housing Material

GLASS FILLED REINFORCED NYLON

Circuit

DPDT

Yayın Yılı

2006

Terminal

PC Pin

Contact Function

ON-(ON)

Illumination

Non-Illuminated
