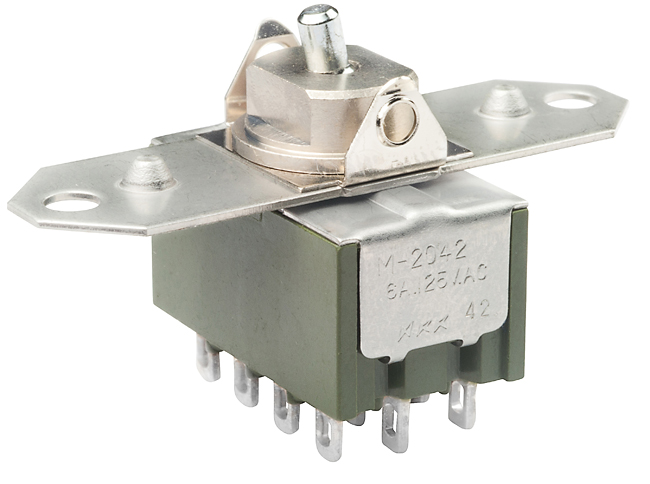

M2042TYW01

Specifications

Panel Cutout Dimensions

Rectangular - 28.50mm x 16.00mm

Yayın Yılı

2015

Mechanical Life

50,000 Cycles

Actuator Type

Actuator Arm, Cap Required

Voltage Rated Ac

125V

Ambalaj

Bulk

Seri

M

Solderability

WAVE

Actuator Marking

Varies by Cap

Dielectric Withstanding Voltage

1500VAC V

Center Contact Material

SILVER

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Switch Type

ROCKER SWITCH

Insulation Materials

DIALLYL PHTHALATE

Switch Function

On-On

Actuator Length

1.17 inch

End Contact Plating

SILVER

Housing Material

STAINLESS STEEL

RoHS Durumu

ROHS3 Compliant

Contact Currentacmax

3A

Çalışma Sıcaklığı

-30°C~85°C

Current Rating Amps

6A AC 4A DC

Electricallife

25,000 Cycles

Contact Ac Max Rating R Load

3A@250VAC

Özellikler

Epoxy Sealed Terminals

Contact Voltageacmax

250V

Montaj Tipi

Panel Mount, Flange

JESD-609 Kodu

e4

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

4A

Actuatorcolor

BLACK

Length Termination

0.157 inch

Insulation Resistance

1000000000Ohm

Center Contact Plating

SILVER

Actuator Material

NYLON

Actuator Angle

25 deg

Terminal Material

COPPER ALLOY

Montaj

Flanges, Panel
