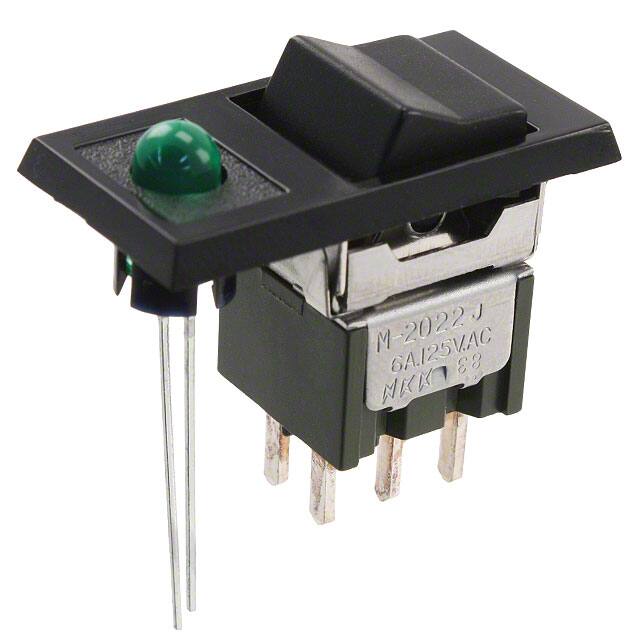

M2022TJW02-FA-2A-F

Specifications

Contact Voltageacmax

250V

Electricallife

25,000 Cycles

Actuator Angle

25 deg

Circuit

DPDT

Mechanical Life

50,000 Cycles

Contact Currentacmax

3A

RoHS Durumu

ROHS3 Compliant

Voltage Rated Ac

125V

Switch Function

On-On

Switch Type

ROCKER SWITCH

Actuator Marking

No Marking

Yayın Yılı

2012

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Contact Materials

Silver

Terminal

Quick Connect

Ambalaj

Tray

Voltage Rated Dc

30V

Montaj

Panel, Snap in

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz

Lead Free

Illumination Voltage Nominal

2.1VDC

Color Actuatorcap

Black

Orientation

Vertical

Terminal Stili

Quick Connect - 0.062 (1.5mm)

Current Rating Amps

6A AC 4A DC

Montaj Tipi

Panel Mount, Snap-In

Özellikler

Epoxy Sealed Terminals

Illumination Type

LED

Actuator Length

0.28 inch

Akım Değeri

6A

Length Termination

0.25 inch

Housing Material

DIALLYL PHTHALATE

Dielectric Withstanding Voltage

1000VAC V

Actuator Type

Concave (Standard V) - Illuminated

Contact Ac Max Rating R Load

3A@250VAC

Seri

M

Insulation Resistance

1000000000Ohm

Illumination Type Color

LED, Green
