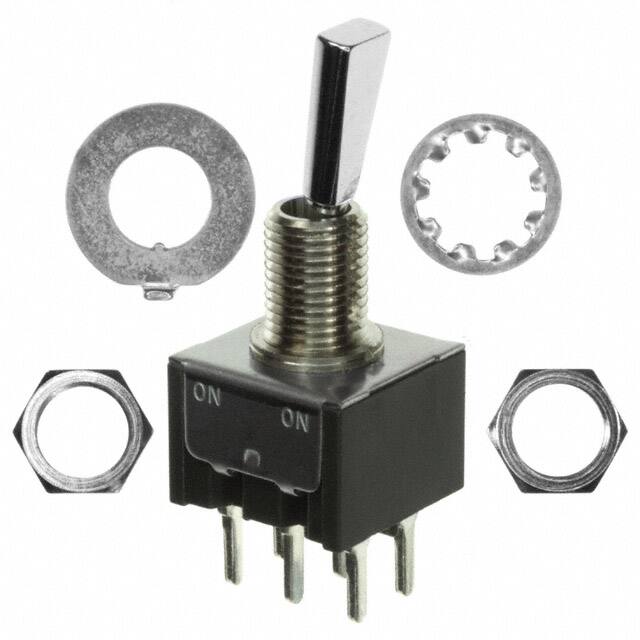

M2022ES1W03

Specifications

Contact Currentacmax

3A

Akım Değeri

4A

Pcb Hole Count

6

Actuator Length

11.40mm

Çalışma Sıcaklığı

-30°C~85°C

Terminal Kaplaması

GOLD OVER NICKEL/SILVER

Illumination Type

Illuminated, Non-Illuminated

Panel Cutout Dimensions

Circular - 6.50mm Dia

Bushing Length

0.35 inch

Terminal Material

COPPER ALLOY

Actuator Type

Flatted

Voltage Rated Ac

125V

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Switch Function

On-On

Insulation Resistance

1000000000Ohm

ECCN Kodu

EAR99

Reach Svhc

No SVHC

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Yayın Yılı

2004

Current Rating Amps

6A AC 4A DC

Montaj Tipi

Panel Mount

Switch Type

TOGGLE SWITCH

Length Termination

0.25 inch

Circuit

DPDT

JESD-609 Kodu

e4

HTS Kodu

8536.50.90.65

Bushing Thread

1/4-40

Dielectric Withstanding Voltage

1500VAC V

Electricallife

25,000 Cycles

Voltage Rated Dc

30V

Kurşunsuz

Contains Lead

Actuator Material

Brass, Chrome Plated

Terminal Stili

PC Pin

End Contact Material

SILVER

Contact Ac Max Rating R Load

3A@250VAC

Contact Current Rating

6A

Illumination

Non-Illuminated

End Contact Plating

SILVER
