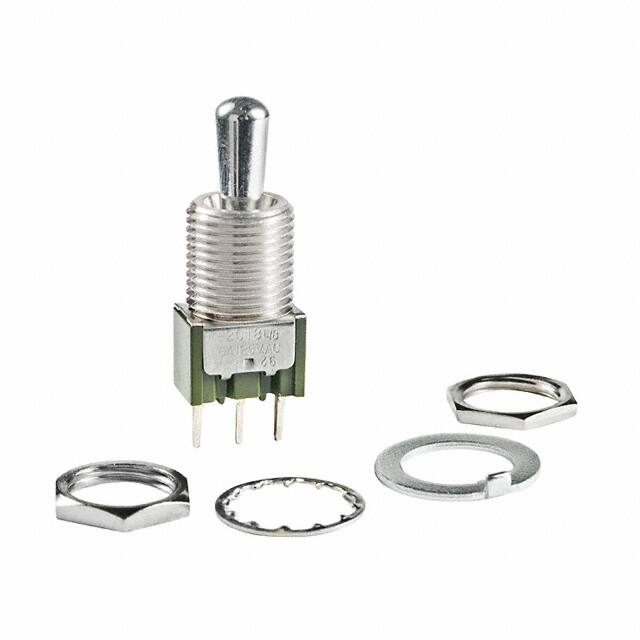

M2018BB1W03

Specifications

Actuator Material

Brass, Chrome Plated

Terminal Kaplaması

GOLD OVER NICKEL/SILVER

Terminal Stili

PC Pin

Voltage Rated Dc

30V

Çalışma Sıcaklığı

-30°C~85°C

Electricallife

25,000 Cycles

Actuator Length

11.50mm

Contact Currentacmax

3A

Akım Değeri

3A

Pcb Hole Count

3

Dielectric Withstanding Voltage

1500VAC V

Illumination

Non-Illuminated

Parça Durumu

Active

End Contact Plating

SILVER

Switch Function

Mom-Off-Mom

Contact Ac Max Rating R Load

3A@250VAC

Fabrika Tedarik Süresi

10 Weeks

Contact Function

(ON)-OFF-(ON)

Voltage Rated Ac

125V

Actuator Type

Standard Round

End Contact Material

SILVER

Terminal Material

COPPER ALLOY

Panel Cutout Dimensions

Circular - 12.50mm Dia

Bushing Length

0.472 inch

Ambalaj

Bulk

Current Rating Amps

6A AC 3A DC

Yayın Yılı

2012

Montaj Tipi

Panel Mount

Solderability

WAVE

RoHS Durumu

ROHS3 Compliant

Kurşunsuz Kodu

yes

Contact Voltageacmax

250V

Insulation Resistance

1000000000Ohm

Bushing Thread

M12 x 1

Terminal

PC Pin

Seri

M

JESD-609 Kodu

e4

Housing Material

STAINLESS STEEL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Circuit

SPDT
