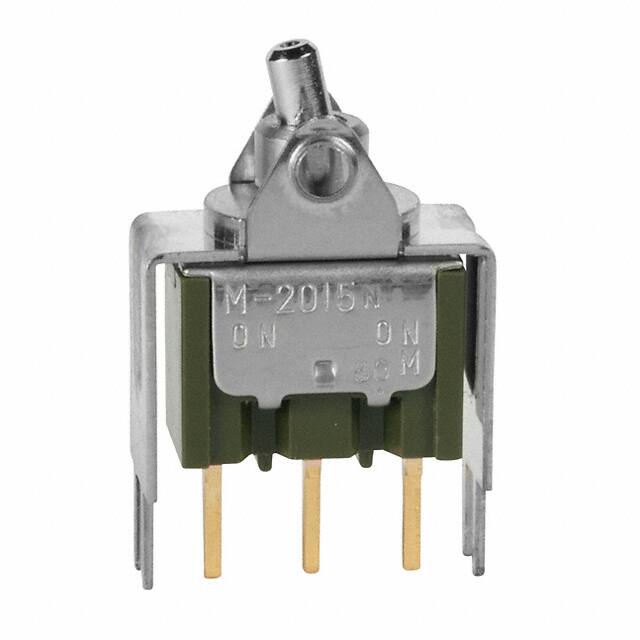

M2015TXG13

Specifications

Parça Durumu

Active

Center Contact Material

COPPER ALLOY

Insulation Materials

DIALLYL PHTHALATE

Voltage Rated Dc

28V

Current Rating Amps

0.4VA AC/DC

Çalışma Sıcaklığı

-30°C~85°C

Length Termination

0.189 inch

Actuator Material

NYLON

Actuatorcolor

BLACK

Terminal Stili

PC Pin

Mechanical Life

50,000 Cycles

JESD-609 Kodu

e4

Solderability

WAVE

Kurşunsuz Kodu

yes

Terminal Kaplaması

GOLD OVER NICKEL/SILVER

Switch Type

ROCKER SWITCH

Actuator Marking

Varies by Cap

Insulation Resistance

1000000000Ohm

Yayın Yılı

2015

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Circuit

SPDT

Pcb Hole Count

7

Contact Function

ON-(ON)

Housing Material

STAINLESS STEEL

Actuator Length

0.346 inch

Terminal Material

COPPER ALLOY

Fabrika Tedarik Süresi

10 Weeks

Switch Function

On-Mom

Contact Dc Max Rating R Load

.014A@28VDC

Terminal

PC Pin

HTS Kodu

8536.50.90.40

End Contact Plating

GOLD OVER NICKEL

Actuator Type

Actuator Arm, Cap Required

End Contact Material

COPPER ALLOY

Dielectric Withstanding Voltage

1500VAC V

Contact Ac Max Rating R Load

.014A@28VAC

Montaj

Through Hole

Contact Currentdcmax

0.014A

Voltage Rated Ac

28V
