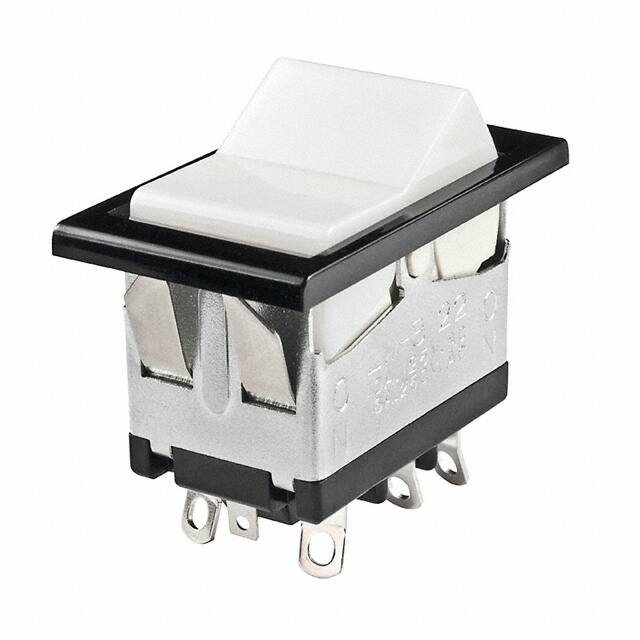

LW3122-K3CF-A

Specifications

End Contact Material

COPPER ALLOY

Terminal Material

BRASS

Actuator Angle

34 deg

Contact Resistance

0.01mOhm

Voltage Rated Dc

30V

Contact Ac Max Rating I Load

5A@125VAC

Kurşunsuz Kodu

yes

Illumination Voltage Nominal

24VAC

Circuit

DPDT

Body Length Or Diameter

29.9974mm

Contact Ac Max Rating R Load

6A@250VAC

Özellikler

With Lamp Covers

Contact Voltageacmax

250V

Fabrika Tedarik Süresi

8 Weeks

Switch Type

ROCKER SWITCH

Switch Function

On-On

Illumination Type Color

Incandescent, Red/Green

Body Breadth

18.9992 mm

Housing Material

STEEL

RoHS Durumu

ROHS3 Compliant

Contact Currentacmax

6A

Çalışma Sıcaklığı

-20°C~50°C

Panel Cutout Dimensions

Rectangular - 32.00mm x 19.80mm

Mechanical Life

30,000 Cycles

Additional Feature

RED,GREEN LAMP CVR., BLK BEZ,

Actuator Type

Concave (Standard V) - Illuminated

Actuator Marking

No Marking

Dielectric Withstanding Voltage

1500VAC V

Center Contact Material

COPPER ALLOY

Montaj

Panel, Snap in

Contact Currentdcmax

6A

Contact Plating

Silver

Terminal Stili

Solder Lug

ECCN Kodu

EAR99

Current Rating Amps

10A AC 6A DC

Electricallife

10,000 Cycles

Montaj Tipi

Panel Mount, Snap-In

Terminal

Solder

JESD-609 Kodu

e4

Nem Hassasiyeti (MSL)

1 (Unlimited)
