Volume pricing
- 1+ pcs$13.05
- 10+ pcs$12.31
- 100+ pcs$11.61
- 500+ pcs$10.96
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

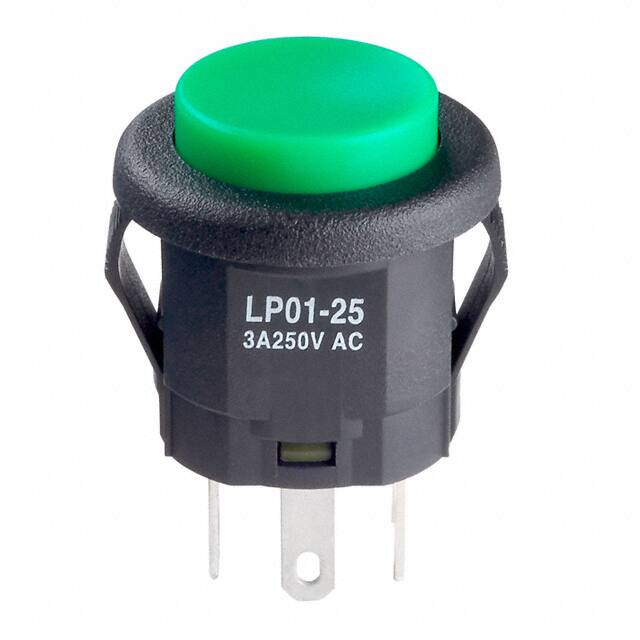

Specifications
- Voltage Rated Dc
- 30V
- Contact Currentacmax
- 3A
- Mechanical Life
- 500,000 Cycles
- Terminal
- Solder
- Panel Cutout Dimensions
- Circular - 17.30mm Dia
- Akım Değeri
- 3A
- Contact Current Rating
- 3A
- Illumination Type
- LED
- Color Actuatorcap
- Green
- Contact Materials
- Bronze
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- RoHS Durumu
- ROHS3 Compliant
- Ambalaj
- Bulk
- Çalışma Sıcaklığı
- -25°C~70°C
- Voltage Rated Ac
- 125V
- Kurşunsuz Kodu
- yes
- Max Voltage Rating Dc
- 30V
- Contact Function
- ON-(ON)
- Max Current Rating
- 3A
- Flammability Rating
- UL94 V-0
- Yayın Yılı
- 2006
- Montaj
- Panel, Snap in
- Electricallife
- 50,000 Cycles
- Actuator Material
- Polycarbonate
- Depth
- 20mm
- Contact Resistance
- 0.05mOhm
- Terminal Stili
- Solder, Quick Connect - 0.110 (2.8mm)
- ECCN Kodu
- EAR99
- Fabrika Tedarik Süresi
- 12 Weeks
- Current Rating Amps
- 3A AC/DC
- Contact Plating
- Silver
- Dielectric Withstanding Voltage
- 1500VAC V
- Contact Ac Max Rating R Load
- 3A@125VAC
- Montaj Tipi
- Panel Mount, Snap-In
- Parça Durumu
- Active
- Seri
- LP01
- Switch Function
- On-Mom
- Circuit
- DPDT
- Uzunluk
- 20mm
- Tip
- Standard
