Volume pricing
- 1+ pcs$12.43
- 10+ pcs$11.73
- 100+ pcs$11.06
- 500+ pcs$10.44
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

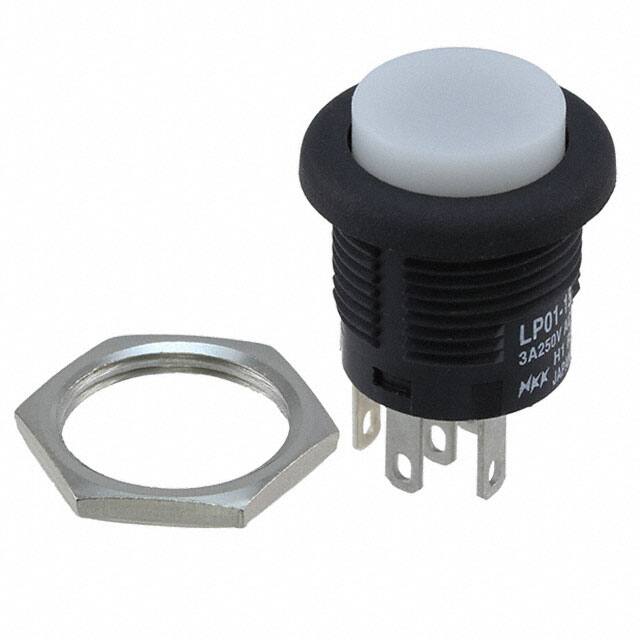

Specifications
- Yayın Yılı
- 2012
- Montaj
- Front, Panel
- Flammability Rating
- UL94 V-0
- Contact Function
- ON-(ON)
- Actuator Length
- 0.217 inch
- ECCN Kodu
- EAR99
- Fabrika Tedarik Süresi
- 12 Weeks
- Current Rating Amps
- 3A AC/DC
- Length Termination
- 0.287 inch
- Contact Plating
- Silver
- Terminal Stili
- Solder, Quick Connect - 0.110 (2.8mm)
- Contact Resistance
- 0.05mOhm
- Actuator Material
- POLYCARBONATE
- Actuator Travel
- 2.9972 mm
- Electricallife
- 50,000 Cycles
- Montaj Tipi
- Panel Mount, Front
- Parça Durumu
- Active
- Contact Ac Max Rating R Load
- 3A@125VAC
- Illumination Type Color
- LED, Red
- Dielectric Withstanding Voltage
- 1500VAC V
- Actuator Type
- Round, Button
- Housing Material
- Polyamide
- Insulation Resistance
- 200000000Ohm
- Tip
- Standard, Illuminated
- Seri
- LP01
- Switch Function
- On-Mom
- Circuit
- DPDT
- Terminal
- Solder
- Panel Cutout Dimensions
- Circular - 16.00mm Dia
- Mechanical Life
- 500,000 Cycles
- Illumination Voltage Nominal
- 1.95VDC
- Contact Currentacmax
- 3A
- Voltage Rated Dc
- 30V
- Akım Değeri
- 3A
- Ambalaj
- Bulk
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Illumination Color
- Red, White
- RoHS Durumu
- ROHS3 Compliant
- Reach Svhc
- No SVHC
- Color Actuatorcap
- White
