Volume pricing
- 1+ pcs$15.76
- 10+ pcs$14.87
- 100+ pcs$14.03
- 500+ pcs$13.23
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

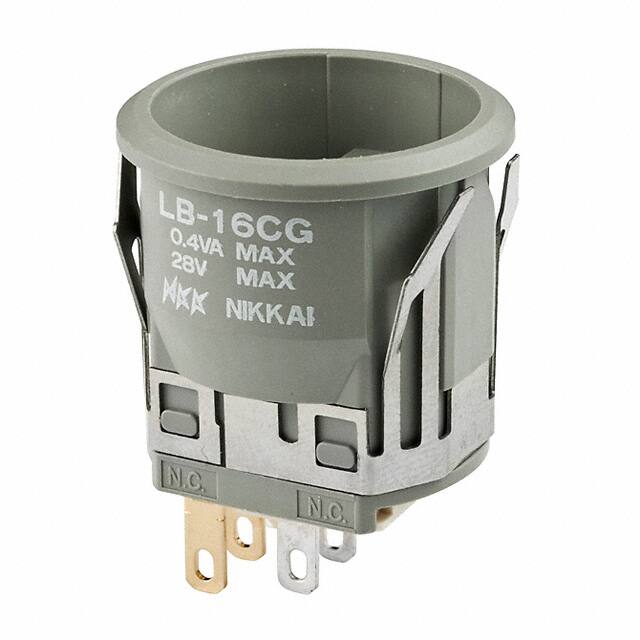

Specifications
- Contact Plating
- Gold
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Resistance
- 0.1mOhm
- Dielectric Withstanding Voltage
- 1500VAC V
- Yayın Yılı
- 2009
- Flammability Rating
- UL94 V-0
- Panel Cutout Dimensions
- Circular - 22.00mm Dia
- Actuator Travel
- 2.9972 mm
- Voltage Rated Dc
- 28V
- Power Rating
- 400mW
- Çalışma Sıcaklığı
- -25°C~70°C
- Tip
- Standard
- Terminal Stili
- Solder, Quick Connect - 0.110 (2.8mm)
- Actuator Length
- 0.197 inch
- Electricallife
- 100,000 Cycles
- Terminal
- Solder
- Mechanical Life
- 200,000 Cycles
- Solderability
- HAND
- Montaj Tipi
- Panel Mount, Snap-In
- Length Termination
- 0.295 inch
- Additional Feature
- Non Illuminated without Cap
- Insulation Resistance
- 200000000Ohm
- Housing Material
- Polyamide
- Switch Function
- On-On
- RoHS Durumu
- ROHS3 Compliant
- Current Rating Amps
- 0.4VA AC/DC
- Circuit
- SPDT
- Voltage Rated Ac
- 28V
- Terminal Material
- PHOSPHOR BRONZE
- Actuator Type
- Plunger for Cap
- Seri
- LB
- Montaj
- Panel, Snap in
- Ambalaj
- Bulk
- Sealing
- EPOXY
- Fabrika Tedarik Süresi
- 13 Weeks
- Body Height
- 21.4884mm
