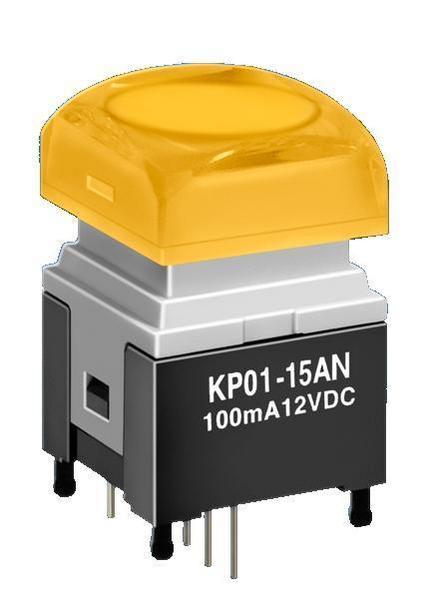

KP0115ACBKG03RGB-3TJB

Specifications

Akım Değeri

100mA

Body Height

11.5062mm

Body Length Or Diameter

15.0114mm

Voltage Rated Dc

12V

Terminal

PC Pin

Mechanical Life

5,000,000 Cycles

Illumination Voltage Nominal

2.0 2.9 2.9VDC

Contact Dc Max Rating R Load

0.1A@12VDC

Pcb Hole Count

14

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-25°C~50°C

Özellikler

Tactile Feedback

End Contact Material

COPPER ALLOY

Color Actuatorcap

Clear (White Filter/Diffuser)

Illumination Type

LED

Center Contact Material

STAINLESS STEEL

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Travel

4.4958 mm

Electricallife

5,000,000 Cycles

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

100mA DC

Length Termination

0.142 inch

Contact Plating

Gold

Terminal Stili

PC Pin

Contact Resistance

0.2mOhm

Flammability Rating

UL94 V-0

Contact Function

OFF-(ON)

Yayın Yılı

2013

Montaj

Through Hole

Circuit

SPST-NO

Switch Function

Off-Mom

Throw Configuration

SPST

Seri

KP

Insulation Resistance

100000000Ohm

Housing Material

Glass fibre

Actuator Type

Square, Button

Tip

Standard, Illuminated

Illumination Type Color

LED, Red/Green/Blue
