Volume pricing
- 1+ pcs$4.86
- 10+ pcs$4.58
- 100+ pcs$4.33
- 500+ pcs$4.08
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

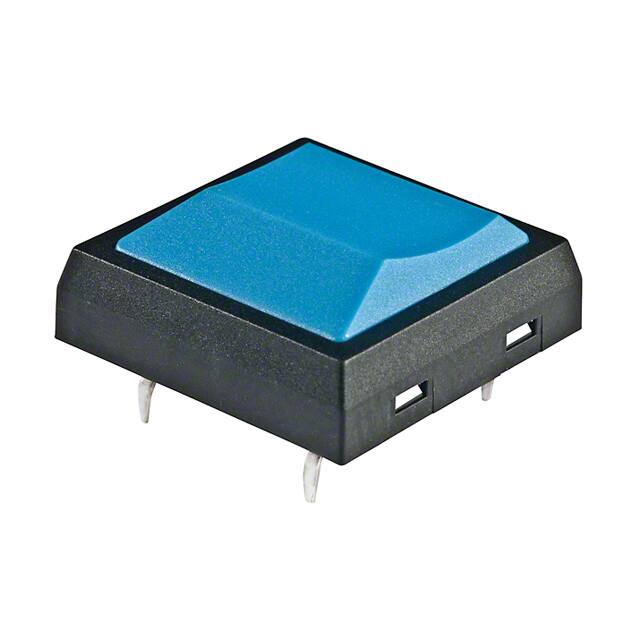

Specifications
- Depth
- 17.7mm
- Contact Materials
- Bronze
- Terminal
- PC Pin
- Illumination
- Non-Illuminated
- Switch Function
- Off-Mom
- Throw Configuration
- SPST
- Çalışma Sıcaklığı
- -25°C~85°C
- Parça Durumu
- Active
- Özellikler
- Process Sealed
- Actuator Type
- Square Button
- Circuit
- SPST-NO
- Kurşunsuz
- Lead Free
- JESD-609 Kodu
- e4
- Montaj Tipi
- Through Hole
- Terminal Stili
- PC Pin
- Kurşunsuz Kodu
- yes
- Ambalaj
- Tray
- Outline
- 17.70mm x 17.70mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Actuator Material
- Polyamide (PA), Nylon
- Actuator Orientation
- Top Actuated
- Contact Plating
- Silver
- Uzunluk
- 17.7mm
- Seri
- JF
- Max Current Rating
- 50mA
- Operating Force
- 196gf
- Contact Rating Voltage
- 0.05A @ 24VDC
- Fabrika Tedarik Süresi
- 14 Weeks
- Switch Travel
- 0.80mm
- Orientation
- Straight
- Switch Type
- KEYPAD SWITCH
- Yayın Yılı
- 2006
- Actuator Height Off Pcb Vertical
- 6.78mm
- Voltage Rated Dc
- 24V
- Montaj
- Through Hole
- Akım Değeri
- 50mA
- Mechanical Life
- 500,000 Cycles
- RoHS Durumu
- ROHS3 Compliant
