Volume pricing
- 1+ pcs$4.00
- 10+ pcs$3.77
- 100+ pcs$3.56
- 500+ pcs$3.36
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

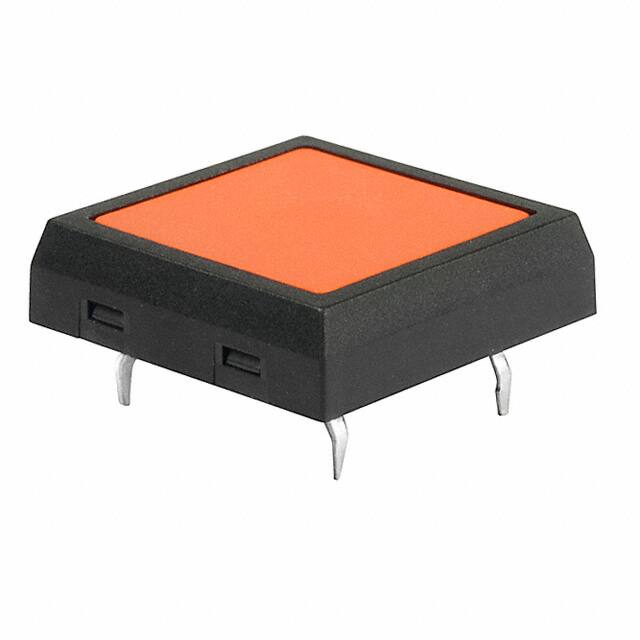

Specifications
- Illumination
- Non-Illuminated
- Terminal
- PC Pin
- Contact Materials
- Bronze
- Depth
- 17.7mm
- Throw Configuration
- SPST
- Switch Function
- Off-Mom
- Çalışma Sıcaklığı
- -25°C~85°C
- Özellikler
- Process Sealed
- Parça Durumu
- Active
- Circuit
- SPST-NO
- Actuator Type
- Square Button
- Contact Current Rating
- 50mA
- Kurşunsuz
- Lead Free
- JESD-609 Kodu
- e4
- Illumination Type
- Illuminated, Non-Illuminated
- Terminal Stili
- PC Pin
- Montaj Tipi
- Through Hole
- Outline
- 17.70mm x 17.70mm
- Ambalaj
- Tray
- ECCN Kodu
- EAR99
- Kurşunsuz Kodu
- yes
- Uzunluk
- 17.7mm
- Contact Plating
- Silver
- Actuator Orientation
- Top Actuated
- Actuator Material
- Polyamide (PA), Nylon
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Seri
- JF
- Fabrika Tedarik Süresi
- 14 Weeks
- Contact Rating Voltage
- 0.05A @ 24VDC
- Operating Force
- 300gf
- Max Current Rating
- 50mA
- Reach Svhc
- No SVHC
- Switch Travel
- 0.40mm
- Orientation
- Straight
- Switch Type
- KEYPAD SWITCH
- RoHS Durumu
- ROHS3 Compliant
- Mechanical Life
- 500,000 Cycles
- Akım Değeri
- 50mA
- Montaj
- Through Hole
- Voltage Rated Dc
- 24V
