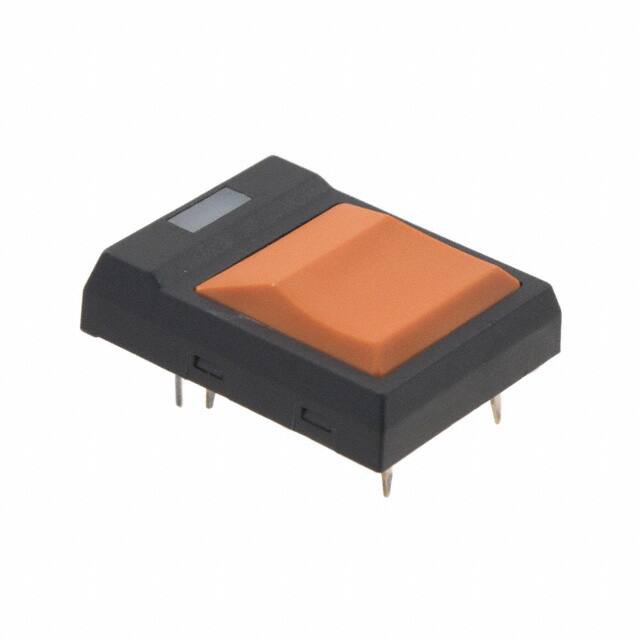

JF15RP3DC

Specifications

Number Of Switches

1

Illumination Type

Illuminated, LED

Additional Feature

RECT. HSNG.&SCULPTRD., RED LED

Terminal Stili

PC Pin

Contact Currentdcmax

0.05A

Center Contact Material

PHOSPHOR BRONZE

Çalışma Sıcaklığı

-25°C~70°C

Terminal

PC Pin

Housing Material

GLASS FILLED REINFORCED NYLON

Electricallife

500000 Cycle(s)

Illumination Voltage Nominal

1.7VDC

Switch Function

Off-Mom

Switch Type

KEYPAD SWITCH

Illumination Type Color

LED, Red

Mechanical Life

500,000 Cycles

Akım Değeri

50mA

Length Termination

0.236 inch

Contact Resistance

0.05mOhm

End Contact Material

BRASS

Insulation Resistance

500000000Ohm

Solderability

WAVE

Body Length Or Diameter

22.7838mm

Pcb Hole Count

6

Operating Force

200gf

Outline

22.80mm x 17.70mm

Contact Dc Max Rating R Load

0.05A@24VDC

Ambalaj

Box

Contact Plating

Silver

Actuator Material

Polyamide (PA), Nylon

Insulation Materials

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

250VAC V

Montaj Tipi

Through Hole

Circuit

SPST-NO

Actuator Type

Square Button

Body Breadth

17.7038 mm

Özellikler

Process Sealed

Parça Durumu

Active

Illumination

Illuminated

Body Height

5.715mm
