Volume pricing
- 1+ pcs$6.23
- 10+ pcs$5.88
- 100+ pcs$5.54
- 500+ pcs$5.23
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

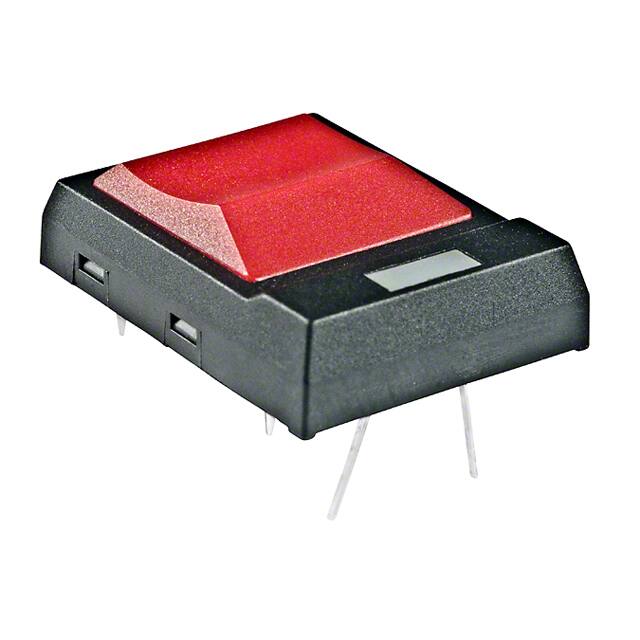

Specifications
- Electricallife
- 500000 Cycle(s)
- Housing Material
- GLASS FILLED REINFORCED NYLON
- Terminal
- PC Pin
- Switch Function
- Off-Mom
- Illumination Voltage Nominal
- 2.2VDC
- Çalışma Sıcaklığı
- -25°C~70°C
- Kurşunsuz
- Lead Free
- Center Contact Material
- PHOSPHOR BRONZE
- Illumination Type
- Illuminated, LED
- Number Of Switches
- 1
- Contact Currentdcmax
- 0.05A
- Terminal Stili
- PC Pin
- Additional Feature
- RECT. HSNG.&SCULPTRD., GRN LED
- Outline
- 22.80mm x 17.70mm
- Contact Dc Max Rating R Load
- 0.05A@24VDC
- Ambalaj
- Tray
- Actuator Material
- Polyamide (PA), Nylon
- Insulation Materials
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Contact Plating
- Silver
- Pcb Hole Count
- 6
- Operating Force
- 200gf
- Insulation Resistance
- 500000000Ohm
- Contact Resistance
- 0.05mOhm
- End Contact Material
- BRASS
- Body Length Or Diameter
- 22.7838mm
- Solderability
- WAVE
- Switch Type
- KEYPAD SWITCH
- Length Termination
- 0.236 inch
- Akım Değeri
- 50mA
- Mechanical Life
- 500,000 Cycles
- Illumination Type Color
- LED, Green
- Body Height
- 5.715mm
- Illumination
- Illuminated
- Throw Configuration
- SPST
- Parça Durumu
- Active
- Özellikler
- Process Sealed
- Actuator Type
- Square Button
- Circuit
- SPST-NO
- Body Breadth
- 17.7038 mm
- Dielectric Withstanding Voltage
- 250VAC V
