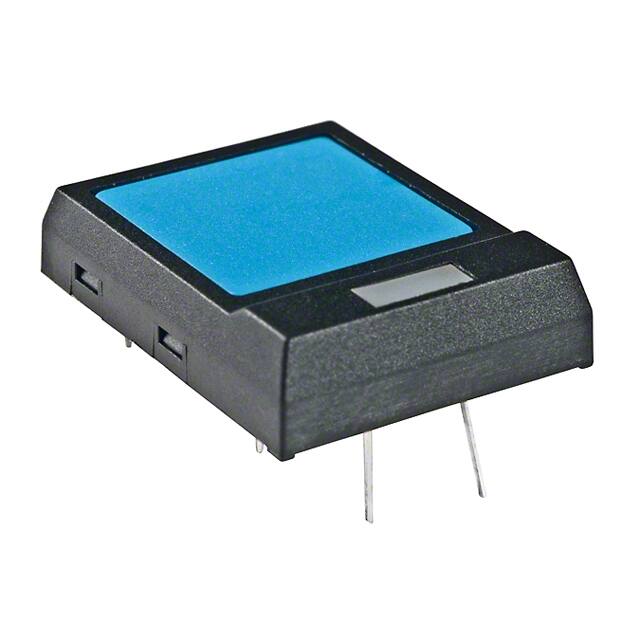

JF15RP1GC

Specifications

Illumination Type

Illuminated, LED

Number Of Switches

1

Terminal Stili

PC Pin

Additional Feature

RECT. HSNG.&SQ. ACTU., RED LED

Contact Currentdcmax

0.05A

Center Contact Material

PHOSPHOR BRONZE

Çalışma Sıcaklığı

-25°C~70°C

Housing Material

GLASS FILLED REINFORCED NYLON

Terminal

PC Pin

Electricallife

500000 Cycle(s)

Illumination Voltage Nominal

1.7VDC

Switch Function

Off-Mom

Switch Type

KEYPAD SWITCH

Illumination Type Color

LED, Red

Mechanical Life

500,000 Cycles

Akım Değeri

50mA

Length Termination

0.236 inch

Contact Resistance

0.05mOhm

End Contact Material

BRASS

Insulation Resistance

500000000Ohm

Body Length Or Diameter

22.7838mm

Solderability

WAVE

Pcb Hole Count

6

Operating Force

300gf

Ambalaj

Box

Contact Dc Max Rating R Load

0.05A@24VDC

Outline

22.80mm x 17.70mm

Contact Plating

Silver

Insulation Materials

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Actuator Material

Polyamide (PA), Nylon

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

250VAC V

Montaj Tipi

Through Hole

Actuator Type

Square Button

Circuit

SPST-NO

Body Breadth

17.7038 mm

Parça Durumu

Active

Özellikler

Process Sealed

Illumination

Illuminated

Body Height

5.715mm
