Volume pricing
- 1+ pcs$3.76
- 10+ pcs$3.54
- 100+ pcs$3.34
- 500+ pcs$3.15
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

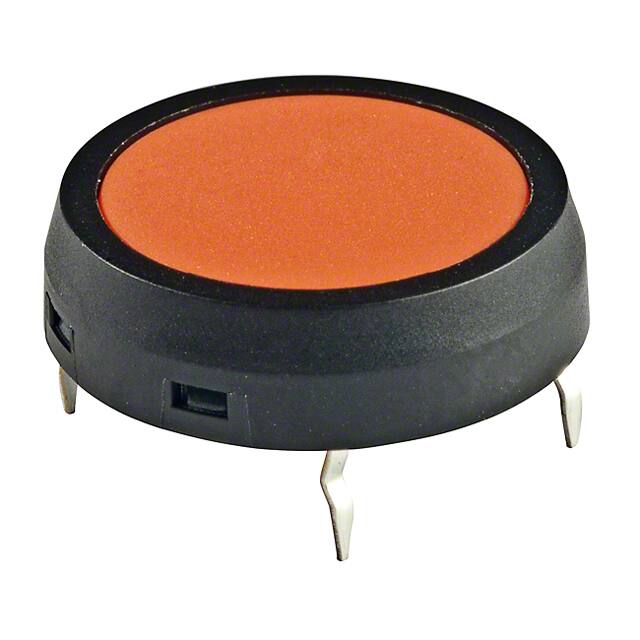

Specifications
- Orientation
- Straight
- Switch Type
- KEYPAD SWITCH
- Mechanical Life
- 500,000 Cycles
- Akım Değeri
- 50mA
- RoHS Durumu
- ROHS3 Compliant
- Yayın Yılı
- 2010
- Actuator Height Off Pcb Vertical
- 5.08mm
- Voltage Rated Dc
- 24V
- Montaj
- Through Hole
- Switch Travel
- 0.40mm
- Seri
- JF
- Fabrika Tedarik Süresi
- 5 Weeks
- Contact Rating Voltage
- 0.05A @ 24VDC
- Operating Force
- 300gf
- Reach Svhc
- No SVHC
- Max Current Rating
- 50mA
- Ambalaj
- Tray
- Outline
- 17.70mm Dia
- Kurşunsuz Kodu
- yes
- ECCN Kodu
- EAR99
- Actuator Orientation
- Top Actuated
- Uzunluk
- 17.7mm
- Contact Plating
- Silver
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Actuator Material
- Polyamide (PA), Nylon
- JESD-609 Kodu
- e4
- Illumination Type
- Illuminated, Non-Illuminated
- Terminal Stili
- PC Pin
- Montaj Tipi
- Through Hole
- Actuator Type
- Round Button
- Circuit
- SPST-NO
- Contact Current Rating
- 50mA
- Kurşunsuz
- Lead Free
- Çalışma Sıcaklığı
- -25°C~85°C
- Parça Durumu
- Active
- Özellikler
- Process Sealed
- Terminal
- PC Pins
- Illumination
- Non-Illuminated
- Depth
- 17.7mm
- Contact Materials
- Bronze
