Volume pricing
- 1+ pcs$3.02
- 10+ pcs$2.85
- 100+ pcs$2.69
- 500+ pcs$2.54
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

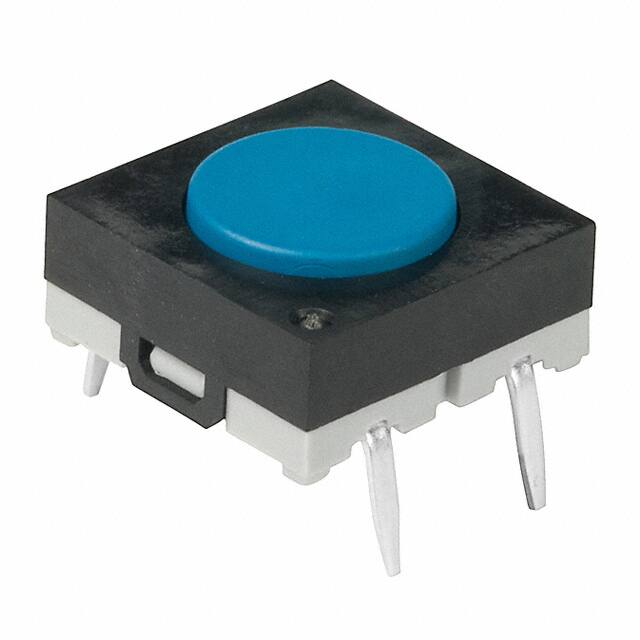

Specifications
- Kurşunsuz
- Lead Free
- RoHS Durumu
- ROHS3 Compliant
- Pcb Hole Count
- 4
- Actuator Type
- Round Button
- Body Height
- 4.9022mm
- Özellikler
- Process Sealed
- Contact Dc Max Rating R Load
- 0.125A@24VDC
- Mechanical Life
- 1,000,000 Cycles
- Terminal
- PC Pins
- Seri
- JB
- JESD-609 Kodu
- e4
- Ambalaj
- Tray
- Switch Function
- Off-Mom
- Insulation Materials
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Kurşunsuz Kodu
- yes
- HTS Kodu
- 8536.50.90.33
- Terminal Stili
- PC Pin
- Ratings
- Dust Tight, IP67, Waterproof
- Outline
- 10.00mm x 10.00mm
- Çalışma Sıcaklığı
- -25°C~70°C
- Actuatorcolor
- BLUE
- Illumination
- Non-Illuminated
- Max Current Rating
- 125mA
- Contact Plating
- Silver
- Actuator Orientation
- Top Actuated
- Actuator Height Off Pcb Vertical
- 4.90mm
- Depth
- 10mm
- ECCN Kodu
- EAR99
- Yayın Yılı
- 2012
- Contact Resistance
- 0.05mOhm
- Dielectric Withstanding Voltage
- 250VAC V
- Reach Svhc
- No SVHC
- Actuator Material
- Polybutylene Terephthalate (PBT)
- Akım Değeri
- 125mA
- Contact Materials
- Brass
- Contact Current Rating
- 125mA
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Rating Voltage
- 0.125A @ 24VDC
- Uzunluk
- 10mm
- Contact Function
- OFF-(ON)
