Volume pricing
- 1+ pcs$5.62
- 10+ pcs$5.30
- 100+ pcs$5.00
- 500+ pcs$4.72
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

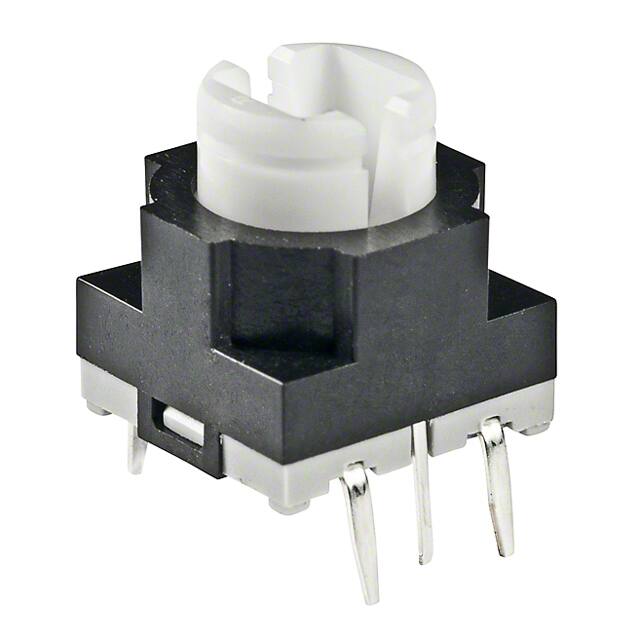

Specifications
- Actuator Length
- 0.248 inch
- Sealing
- EPOXY
- Switch Function
- Off-Mom
- Insulation Materials
- GLASS FILLED POLYAMIDE
- Kurşunsuz Kodu
- yes
- Solderability
- WAVE
- Ambalaj
- Tray
- Seri
- JB
- Terminal
- PC Pin
- Illumination Voltage Nominal
- 1.8VDC
- Mechanical Life
- 1,000,000 Cycles
- Contact Dc Max Rating R Load
- 0.125A@24VDC
- Özellikler
- Process Sealed
- Body Height
- 8.4074mm
- Actuator Travel
- 0.254 mm
- Actuator Type
- Plunger for Cap
- Body Length Or Diameter
- 10.0076mm
- Pcb Hole Count
- 4
- RoHS Durumu
- ROHS3 Compliant
- Kurşunsuz
- Lead Free
- Actuator Orientation
- Top Actuated
- Contact Plating
- Silver
- Illumination Type Color
- LED, Red
- Illumination
- Illuminated
- Çalışma Sıcaklığı
- -25°C~70°C
- Outline
- 10.00mm x 10.00mm
- Terminal Stili
- PC Pin
- Circuit
- SPST-NO
- Fabrika Tedarik Süresi
- 9 Weeks
- Body Breadth
- 10.0076 mm
- Contact Function
- OFF-(ON)
- Contact Rating Voltage
- 0.125A @ 24VDC
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Current Rating
- 125mA
- Contact Materials
- Brass
- Akım Değeri
- 125mA
- Reach Svhc
- No SVHC
- Dielectric Withstanding Voltage
- 250VAC V
- Contact Resistance
- 0.05mOhm
- Yayın Yılı
- 2012
