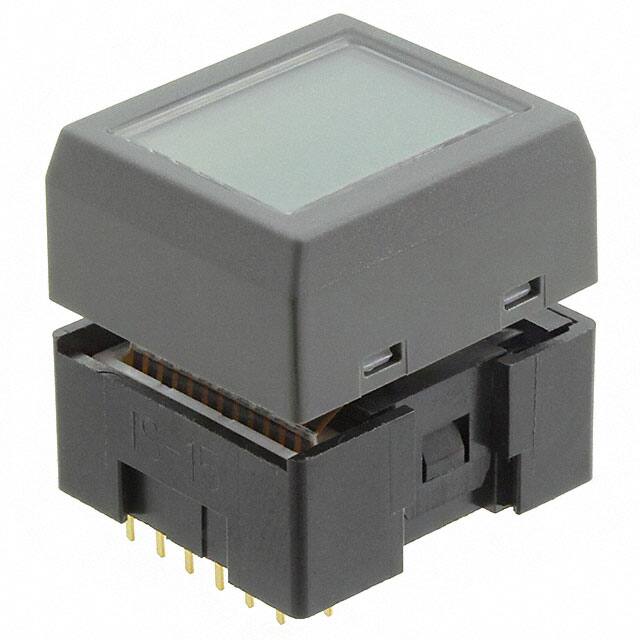

IS15BBFP4RGB

Specifications

Led Color

Red - Green - Blue

Body Length Or Diameter

23.1394mm

Parça Durumu

Active

Ambalaj

Bulk

Besleme Gerilimi

3.0V~5.5VDC

Led Forward Current

10 8.5 8mA

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

13 Weeks

Body Breadth

20.5994 mm

Actuator Travel

1.8034 mm

Length Termination

0.11 inch

Contact Resistance

0.2mOhm

Renk

Blue, Green, Red

Operating Force

224gf

Electricallife

1000000 Cycle(s)

Yayın Yılı

2013

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Tip

Pushbutton, LCD

Switch Function

Off-Mom

Body Height

10.0076mm

Circuit

SPST-NO

Style

Standard

Terminal Stili

PC Pin

Throw Configuration

SPST

Çalışma Sıcaklığı

-20°C~60°C

Viewing Area

17.0mm L x 13.0mm W

Display Mode

Black and White, FSTN Positive

Travel Range

1.8mm

Montaj

Through Hole

Illumination

LED

Contact Rating Voltage

0.1A @ 12VDC

Terminal

PC Pin

Seri

SmartDisplay™

Pcb Hole Count

16

Insulation Resistance

100000000Ohm

Contact Dc Max Rating R Load

0.1A@12VDC

Kurşunsuz Kodu

yes

Pixel Format

36 x 24

Contact Currentdcmax

0.1A
