Volume pricing
- 1+ pcs$4.12
- 10+ pcs$3.88
- 100+ pcs$3.66
- 500+ pcs$3.46
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

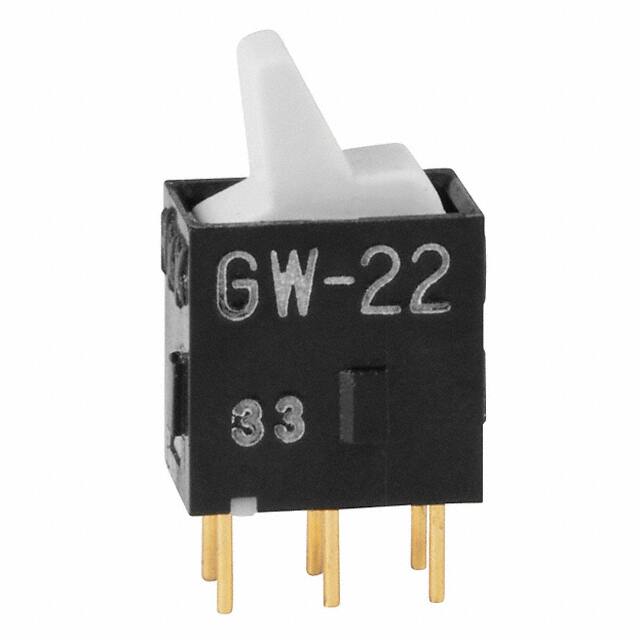

Specifications
- Actuator Type
- Paddle
- Switch Function
- On-On
- Actuator Material
- GLASS FILLED POLYAMIDE
- Color Actuatorcap
- White
- Actuator Angle
- 28 deg
- Terminal Stili
- PC Pin
- Circuit
- DPDT
- Orientation
- Vertical
- Montaj
- Through Hole
- Housing Material
- GLASS FILLED POLYAMIDE
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Length Termination
- 0.102 inch
- Contact Resistance
- 0.08mOhm
- Insulation Materials
- GLASS FILLED POLYAMIDE
- Fabrika Tedarik Süresi
- 9 Weeks
- Current Rating Amps
- 0.4VA AC/DC
- Kurşunsuz Kodu
- yes
- Terminal Material
- PHOSPHOR BRONZE
- Actuator Length
- 0.15 inch
- ECCN Kodu
- EAR99
- Illumination Type
- Illuminated
- Terminal
- PC Pin
- Switch Type
- ROCKER SWITCH
- Insulation Resistance
- 500000000Ohm
- Kurşunsuz
- Lead Free
- End Contact Material
- PHOSPHOR BRONZE
- Yayın Yılı
- 2010
- Dielectric Withstanding Voltage
- 500VAC V
- Power Rating
- 400mW
- Reach Svhc
- No SVHC
- Voltage Rated Ac
- 28V
- Çalışma Sıcaklığı
- -30°C~85°C
- Mechanical Life
- 50,000 Cycles
- Voltage Rated Dc
- 28V
- JESD-609 Kodu
- e4
- Sealing
- EPOXY
- Contact Plating
- Gold
- Actuator Marking
- No Marking
- RoHS Durumu
- ROHS3 Compliant
- Electricallife
- 50,000 Cycles
