Volume pricing
- 1+ pcs$4.08
- 10+ pcs$3.85
- 100+ pcs$3.64
- 500+ pcs$3.43
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

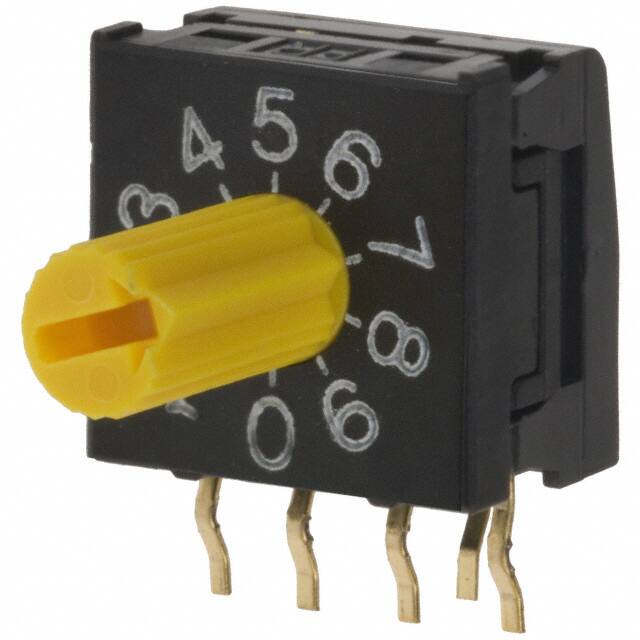

Specifications
- Switch Type
- ROTARY CODED SWITCH
- Terminal Stili
- PC Pin
- Montaj
- Through Hole
- Voltage Rated Dc
- 5V
- Actuator Type
- Rotary with Shaft
- Mechanical Life
- 10,000 Steps
- Circuit
- BCD Complement
- Washable
- No
- Orientation
- Right Angle
- Additional Feature
- PLASTIC SHAFT
- Contact Finish
- Gold
- Pcb Hole Count
- 3
- Contact Materials
- Copper Alloy
- Kurşunsuz Kodu
- yes
- Height Above Board
- 0.394 10.00mm
- Actuator Level
- Raised
- Nominal Gerilim
- 5VDC
- RoHS Durumu
- ROHS3 Compliant
- Uzunluk
- 0.393 10.00mm
- Electricallife
- 10,000 Steps
- Contact Resistance
- 0.1mOhm
- Index Angle
- 36 deg
- Body Material
- Polyamide (PA), Nylon, Glass Filled
- Montaj Tipi
- Through Hole, Right Angle
- Seri
- FR01
- Terminal Material
- PHOSPHOR BRONZE
- Kurşunsuz
- Lead Free
- Contact Voltagedcmax
- 5V
- Yayın Yılı
- 2011
- Housing Material
- Nylon
- Body Height
- 6.5532mm
- Contact Timing
- BREAK-BEFORE-MAKE
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Ambalaj
- Tube
- Pitch
- 0.100 2.54mm Full
- Terminal
- PC Pin
- Fabrika Tedarik Süresi
- 9 Weeks
- Dielectric Withstanding Voltage
- 250VAC V
- Akım Değeri
- 100mA
- Contact Currentdcmax
- 0.1A
