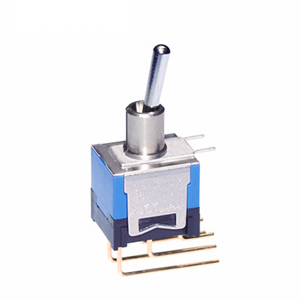

D22028V

Specifications

Actuator Type

Standard Round

Actuator Length

10.50mm

Actuator Material

Brass, Chrome Plated

Montaj

Through Hole, Vertical

Contact Resistance

0.05mOhm

End Contact Plating

GOLD

Body Height

20.32mm

Housing Material

POLYBUTYLENE TEREPHTHALATE

Çalışma Sıcaklığı

-10°C~70°C

Bushing Length

0.303 inch

Seri

D2

Terminal Stili

PC Pin

Insulation Materials

GLASS FILLED POLYAMIDE

Illumination

Non-Illuminated

Parça Durumu

Active

Insulation Resistance

1000000000Ohm

RoHS Durumu

ROHS3 Compliant

Pcb Hole Count

8

Length Termination

0.138 inch

Electricallife

50,000 Cycles

Switch Type

TOGGLE SWITCH

Body Length Or Diameter

14.7066mm

Montaj Tipi

Through Hole, Right Angle, Vertical

Switch Function

Mom-Off-Mom

Terminal

PC Pin

Circuit

DPDT

Current Rating Amps

0.4VA AC/DC

Voltage Rated Dc

48V

Contact Timing

BREAK-BEFORE-MAKE

Center Contact Material

PHOSPHOR BRONZE

Voltage Rated Ac

48V

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2015

Ambalaj

Bulk

Dielectric Withstanding Voltage

1500VAC V

Contact Ac Max Power Rating R Load

0.4VA@48VAC

Fabrika Tedarik Süresi

8 Weeks

Body Breadth

12.7 mm

Contact Function

(ON)-OFF-(ON)
