Volume pricing
- 1+ pcs$14.88
- 10+ pcs$14.04
- 100+ pcs$13.24
- 500+ pcs$12.49
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

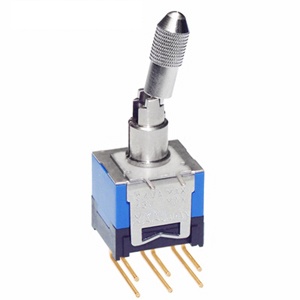

Specifications
- Actuator Length
- 19.40mm
- Actuator Type
- Locking Lever
- Contact Resistance
- 0.05mOhm
- Montaj
- Through Hole
- Actuator Material
- Brass, Chrome Plated
- End Contact Plating
- GOLD
- Body Height
- 17.78mm
- Housing Material
- POLYBUTYLENE TEREPHTHALATE
- Çalışma Sıcaklığı
- -10°C~70°C
- Bushing Length
- 0.26 inch
- Seri
- D2
- Terminal Stili
- PC Pin
- Insulation Materials
- GLASS FILLED POLYAMIDE
- Illumination
- Non-Illuminated
- Parça Durumu
- Active
- Insulation Resistance
- 1000000000Ohm
- RoHS Durumu
- ROHS3 Compliant
- Length Termination
- 0.138 inch
- Pcb Hole Count
- 8
- Electricallife
- 50,000 Cycles
- Body Length Or Diameter
- 14.7066mm
- Switch Type
- TOGGLE SWITCH
- Montaj Tipi
- Through Hole, Right Angle
- Switch Function
- On-Mom
- Terminal
- PC Pin
- Current Rating Amps
- 0.4VA AC/DC
- Circuit
- DPDT
- Voltage Rated Dc
- 48V
- Contact Timing
- BREAK-BEFORE-MAKE
- Voltage Rated Ac
- 48V
- Center Contact Material
- PHOSPHOR BRONZE
- Kurşunsuz Kodu
- yes
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Yayın Yılı
- 2015
- Ambalaj
- Bulk
- Dielectric Withstanding Voltage
- 1500VAC V
- Contact Ac Max Power Rating R Load
- 0.4VA@48VAC
- Fabrika Tedarik Süresi
- 8 Weeks
- Body Breadth
- 12.7 mm
- Contact Function
- ON-(ON)
