Volume pricing
- 1+ pcs$7.06
- 10+ pcs$6.66
- 100+ pcs$6.29
- 500+ pcs$5.93
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Çalışma Sıcaklığı
- -10°C~70°C
- Bushing Length
- 0.283 inch
- Terminal Stili
- PC Pin
- Body Height
- 13.8938mm
- Body Length Or Diameter
- 14.4018mm
- Montaj Tipi
- Panel Mount
- Contact Current Rating
- 100mA
- Terminal
- PC Pin
- Circuit
- SPDT
- Current Rating Amps
- 0.4VA AC/DC
- Insulation Materials
- GLASS FILLED POLYAMIDE
- Insulation Resistance
- 1GOhm
- Panel Cutout Dimensions
- Circular - 6.50mm Dia
- Pcb Hole Count
- 3
- Length Termination
- 0.142 inch
- Electricallife
- 50,000 Cycles
- Kurşunsuz Kodu
- yes
- Genişlik
- 7mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- JESD-609 Kodu
- e4
- Center Contact Material
- PHOSPHOR BRONZE
- Illumination Type
- Illuminated, Non-Illuminated
- Voltage Rated Ac
- 48V
- ECCN Kodu
- EAR99
- Bushing Type
- M6P0.75
- Body Breadth
- 7.0104 mm
- Housing Material
- POLYBUTYLENE TEREPHTHALATE
- Seri
- D2
- Actuator Type
- Standard Round
- Actuator Length
- 10.50mm
- Contact Resistance
- 0.05mOhm
- Actuator Material
- Brass, Chrome Plated
- Montaj
- Panel

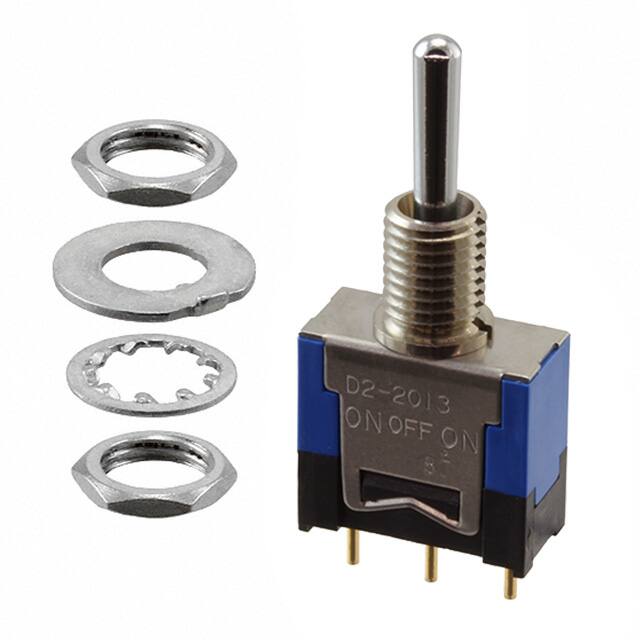

- Switch Type
- TOGGLE SWITCH
- Switch Function
- On-Off-On
- Contact Plating
- Gold
- Voltage Rated Dc
- 48V
- Illumination
- Non-Illuminated
- Parça Durumu
- Active
- Reach Svhc
- No SVHC
